Harvia Legend 150 BK WH Pkg
Questions? Speak To an Expert at +1 (616) 282-2366

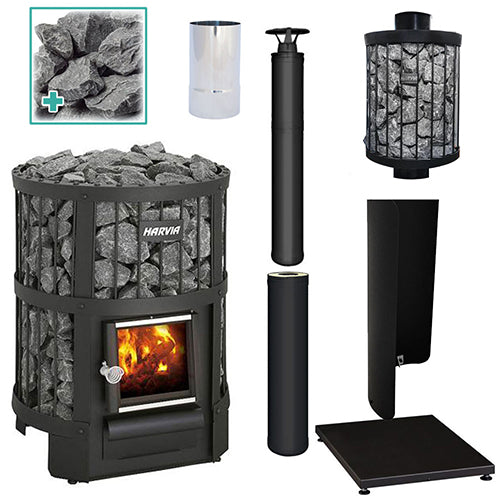

Wood-Burning Sauna Stove Package, 16kW, Black. Includes Legend 150 Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, Water Heater, Smoke Pipe, and Stones.
The Harvia Legend 150 BK WH Sauna Stove Package comes complete with the Legend 150 Sauna Stove, Protective Bedding, Protective Sheath, Chimney Kit, Chimney Extension, Water Heater, Smoke Pipe, and Sauna Stones. This black stove package offers a comfortably moist sauna bath for sauna rooms from 212 to 459 cubic feet (CF).
🔑 Key Features

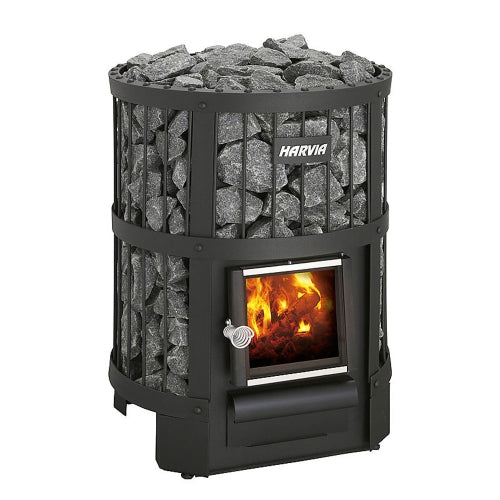

Legend 150 Sauna Stove
- Wood-burning
- 16kW
- Heats two rooms
- Cleaner and efficient burning
- Black steel frame
- Floor model
- Adjustable feet
- Designed, engineered, and made in Finland
- For sauna rooms from 212 to 459 cu. ft.
- 264 pound stone capacity
- Dimensions: 20.9"W (53 cm) x 20.9"D (53 cm) x 29.1"-30.3"H (74-77 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

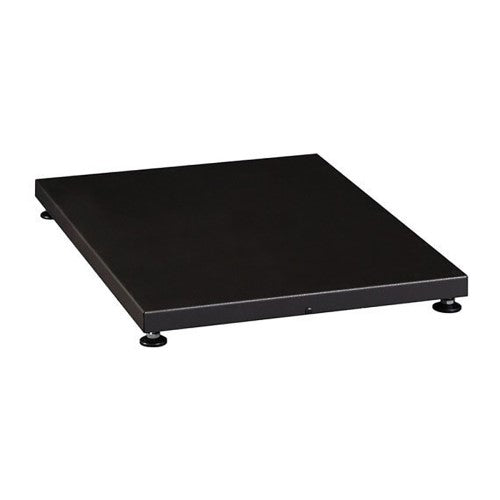

Protective Bedding
- Black aluminum-zinc coated steel
- Helps protect floors
- Adjustable feet
- Can be installed on a sloping floor
- For wood-burning sauna stoves
- Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

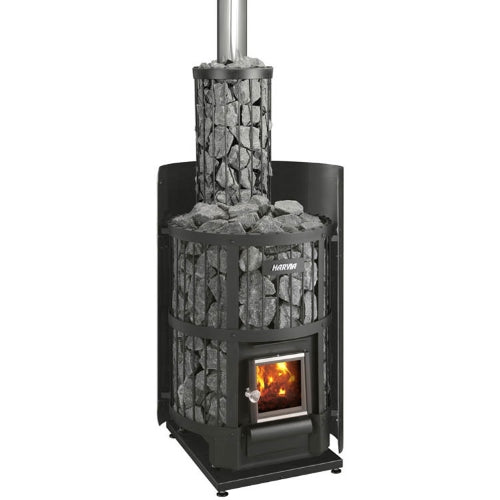

Protective Sheath
- Black steel
- Can range from 1 to 3 as required when mounted
- Reduces safety distance to combustible materials
- Dimensions: 20.5"W (52 cm) x 5"D (13 cm) x 39.4"H (100 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

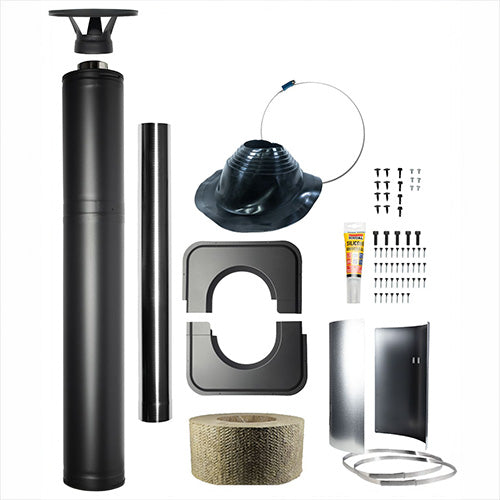

Chimney Kit
- Black powder-coated steel
- CE marking
- Mineral wool insulation material
- Mounts in vertical position
- Able to be easily extended
- Touch protection not needed if installed in a sauna
- Soot fire resistant
- Freeze thaw resistant
- Works with wood-burning sauna stoves
- Works with smaller fireplaces
- Works with iron stoves
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

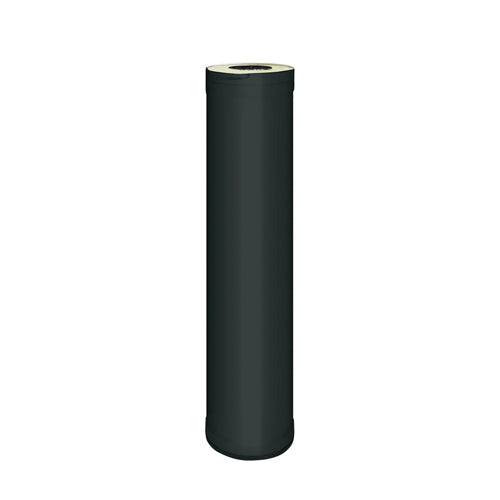

Chimney Extension
- Black powder-coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

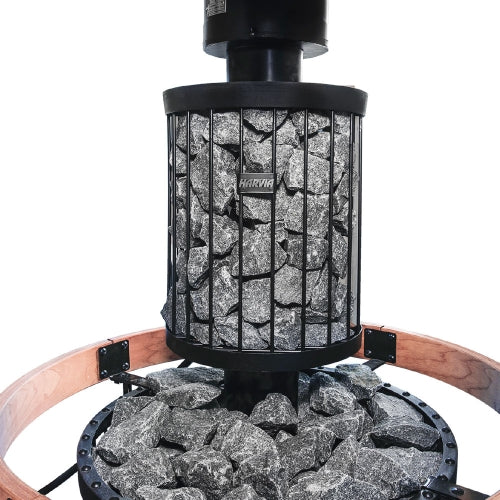

Water Heater
- Black steel
- Heats water quickly
- New tap solution
- Tap can be fixed to a wall or bench
- Stones cover the front of the tank
- 25 liter water tank capacity
- 33 pound stone capacity when using 2" to 4" (5-10 cm) split-face sauna stones
- Dimensions: 14.2"W (36 cm) x 14.2"D (36 cm) x 35.8"H (91 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

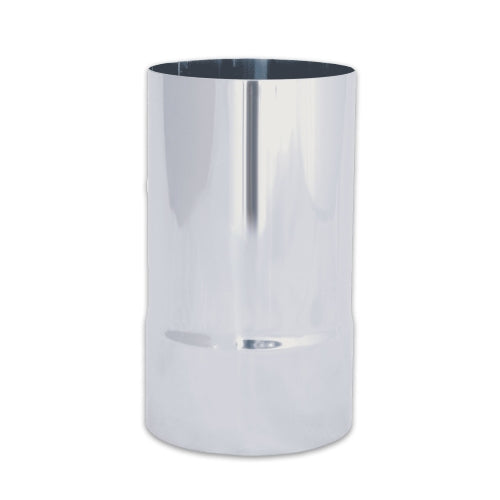

Smoke Pipe
- Stainless steel
- CE certification
- Works with wood-burning sauna stoves except Harvia 50
- Dimensions: 4.53"W (12 cm) x 4.53"D (12 cm) x 7.9"H (20 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

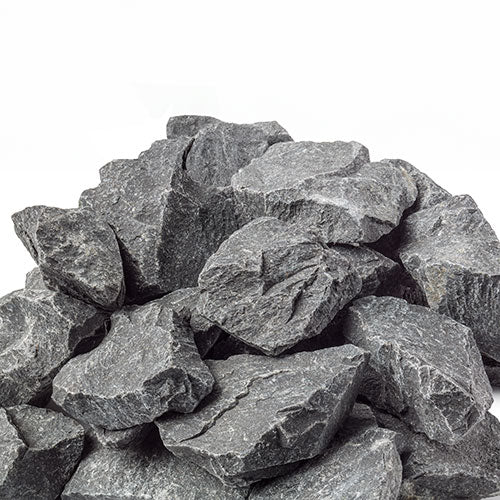

Sauna Stones
- Olivine diabase sauna stones
- Split-face shape
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Includes
Legend 150 Sauna Stove
- Sauna Stove
- Stove Door
- Ash Box
- Adjustable Legs
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Protective Bedding
- Small Protective Bedding
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Protective Sheath
- Protective Sheath Panel
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Kit
- Chimney
- Utility Box
- Non-Insulated Smoke Pipe
- Rain Cap
- Rubber Rain Flange
- Installation Set for Rain Flange
- Stainless Steel Lead-Through Flange for Ceiling
- Lead-Through Insulation and Protector
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Chimney Extension
- 1000mm Chimney Extension
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Water Heater
- Water Heater
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Smoke Pipe
- Smoke Pipe
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 264 lbs of 4" to 6" (10-15 cm) Split-Face Stones
Specifications
| Model | LEGEND 150 BK WH PKG |
| Model | LEGEND 150 |
|
Kilowatt Rating |
16kW |
|
Primary Fuel |
Wood |
|
Maximum Firewood Length |
15" (39 cm) |
|
Diameter of Firewood |
3-6" (8-15 cm) |
|
Minimum Cubic Feet |
212 cu. ft. |
|
Maximum Cubic Feet |
459 cu. ft. |
|
Minimum Room Height |
69" (175 cm) |
|
Flue Connection Location |
Top and Back |
|
Heater Weight |
128 lbs (58 kg) |
|
Shipping Weight with Sauna Stones |
392 lbs (178 kg) |
|
Width |
20.9" (53 cm) |
|
Depth |
20.9" (53 cm) |
|
Height |
29.1"-30.3" (74-77 cm) |
| Model | WL100 |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Weight |
23.6 lbs (11 kg) |
|
Width |
18.5" (47 cm) |
|
Depth |
26.2" (67 cm) |
|
Height |
2.4"-3"H (6-8 cm) |
| Model | WL200 |
|
Construction Material |
Stainless Steel |
|
Weight |
15 lbs (7 kg) |
|
Width |
20.5" (52 cm) |
|
Depth |
5" (13 cm) |
|
Height |
39.4" (100 cm) |
|
Color |
Black |
| Model | WHP1500M |
|
Construction Material |
Stainless Steel |
|
Non-Vertical Installations |
Not Allowed |
|
Weight |
24.9 lbs (11 kg) |
|
Width |
8.7" (22 cm) |
|
Depth |
8.7" (22 cm) |
|
Color |
Black |
|
Height |
59.1" (150 cm) |
| Model | WHP1000M |
|
Non-Vertical Installations |
Not Allowed |
|
Wind Load |
6.5 ft (2m) Above Last Support |
|
Flexural Strength-Tensile Strength |
16.4 ft (5m) |
|
Maximum Spacing of Lateral Supports |
9.8 ft (3m) |
|
Weight |
14.8 lbs (7 kg) |
|
Width |
8.7" (22 cm) |
|
Depth |
8.7" (22 cm) |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Height |
39.4" (100 cm) |
| Model | WP250LD |
|
Construction Material |
Stainless Steel |
|
Color |
Black |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Weight |
24 lbs (11 kg) |
|
Width |
14.2" (36 cm) |
|
Depth |
14.2" (36 cm) |
|
Height |
35.8" (91 cm) |
|
Water Tank Capacity |
25 liters |
| Model | WZ11520 |
|
Construction Material |
Stainless Steel |
|
Weight |
0.88 lbs (1 kg) |
|
Width |
4.53" (12 cm) |
|
Depth |
4.53" (12 cm) |
|
Height |
7.9" (20 cm) |
Shipping
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
Freight Quote Requests: Email contact@radiantdollhealth.com. Please include sauna heater model number and full shipping address.
Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
Technical
Installation and Operation Manual
Harvia-Legend-Sauna-Heater-IOM.pdf
Harvia Protective Bedding WL and WX IOM.pdf
Harvia Protective Sheath WL200 IOM.pdf
Harvia Chimney Kit WHP1500 and WHP1500M IOM.pdf
Harvia Chimney Extension WHP500 and WHP1000 IOM.pdf
Harvia Water Heater WP250LD IOM.pdf
Data Sheet
Harvia-WK150LD-Sauna-Heater-Data-Sheet.pdf
