Harvia Spirit SP90E Pkg (Fenix)
Questions? Speak To an Expert at +1 (616) 282-2366

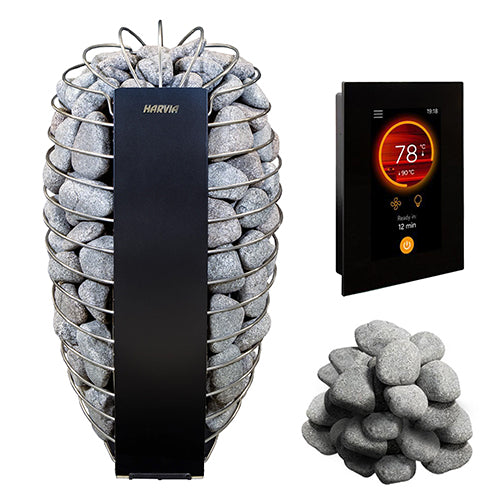

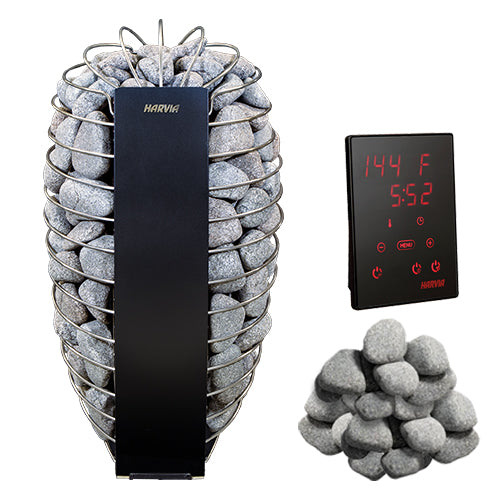

Spirit Series 9kW Sauna Heater Package, Black. Includes SP90E Heater, Fenix Control, and Stones.
The Harvia Spirit 9kW Sauna Heater Package comes complete with the Spirit SP90E Sauna Heater, Xenio Wi-Fi Control or Fenix Wi-Fi Control, and Sauna Stones. This premium-quality heater package has an elegantly curved shape, allowing it to heat quickly to your desired temperature in sauna rooms from 177 to 494 cubic feet (CF).
The integrated safety features of the Spirit SP90E ensure that the heater cannot be turned on if items are placed on top of it, making it is safe to start the heater remotely using the available Wi-Fi app. It has dual safety sensors with one monitoring the heater and one monitoring the temperature of the sauna room to prevent overheating.
🔑 Key Features

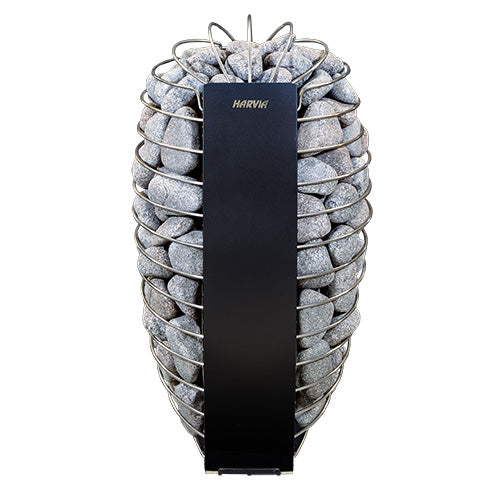

Spirit SP90E Sauna Heater
- Wall-mounted design
- Stylish and high-quality heater
- Heats up the sauna quickly and safely
- Integrated safety functions ensure safe use
- Compatible with the Xenio Controls
- Designed, engineered, and made in Finland
- 110 pound stone capacity
- Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

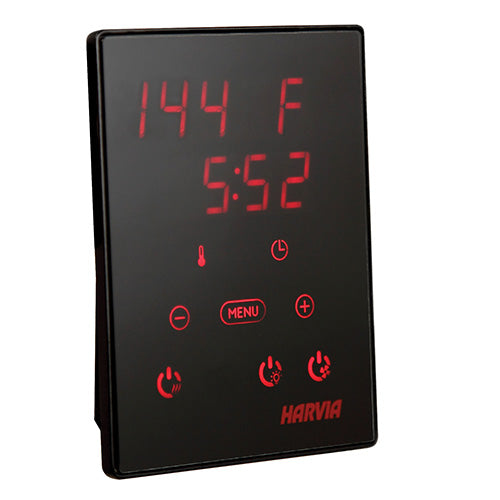

Xenio Wi-Fi Control
- Modern control unit that is precise and easy
- Wi-Fi connectivity for remote control and monitoring
- Controls time, temperature, lighting, and fan
- Operating temperature range of 104-194°F
- Surface of flush-mount installation type
- Can be installed inside or outside the sauna room
- Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

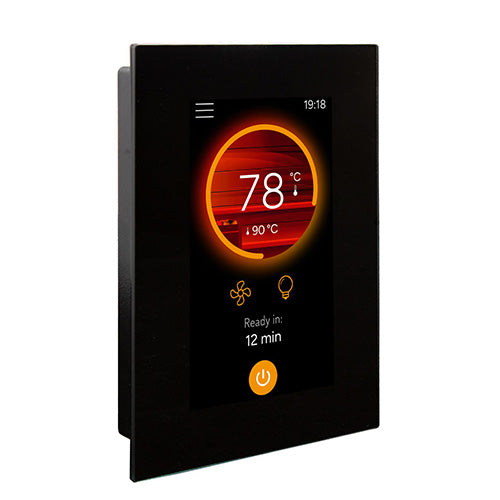

Fenix Wi-Fi Control
- Controls the sauna heater, lighting, and ventilation
- Intelligent user interface that is precise and easy
- High-quality glass screen control panel
- Learns with AI and adapts to the performance of your sauna heater
- Wi-fi connectivity for remote control and monitoring
- Control panel operating temperature range from 104-194°F
- Surface of flush-mounted installation
- Installs inside or outside the sauna room
- Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

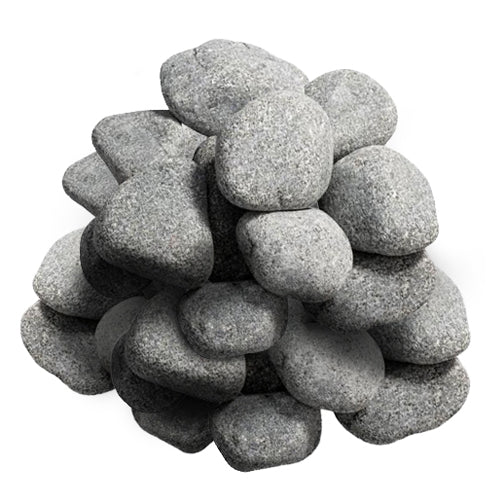

Sauna Stones
- Olivine diabase sauna stones
- Round shape
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
Spirit SP90E Sauna Heater
- Sauna Heater
- Temperature Sensor
- Please note: Must install per the instructions in the heater manual.
- Wall-Mounting Bracket
- Mounting Screws
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Xenio Wi-Fi Control
- Control
- Temperature Sensor
- Please note: Must install the sensor included with the heater per the instructions in the heater manual.
- Power Unit
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Fenix Wi-Fi Control
- Control Panel
- Temperature Sensor
- Please note: Must install the sensor included with the heater per the instructions in the heater manual.
- Power Unit
- Data Cable
- Installation Materials
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 132 lbs of 2" to 4" (5-10 cm) Round Stones
Specifications
| Model | SPIRIT SP90E PKG |
| Model | SP90E |
| Room Size | 177-494 cu. ft. |
| Wattage Rating | 9000 |
|
Voltage |
240 |
|
Phase |
1 |
|
Amperage |
37.5 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
8 |
|
Safety Listing |
ETL (Electrical Testing Laboratories) |
|
Minimum Ceiling Height |
75" (190 cm) |
|
Safety Distance (Front to Back) |
See Installation and Operation Manual |
|
Safety Distance (Left to Right) |
See Installation and Operation Manual |
|
Stone Capacity |
110 lbs (49.9 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
15" (38.1 cm) |
|
Depth |
13.1" (33.3 cm) |
|
Height |
29.5" (74.9 cm) |
|
Weight |
28.8 lbs (13.1 kg) |
|
Shipping Weight with Sauna Stones |
160.8 lbs (72.9 kg) |
| Model | CX45-U1-U3-XW |
|
Maximum Output Kilowatt Rating |
10.8kW |
|
Voltage |
240 |
|
Phase |
1 |
|
Temperature Adjustment Range |
104-194°F |
|
Pre-Setting Time Adjustment Range |
0-12 Hours |
|
Width |
3.4" (8.6 cm) |
|
Depth |
1" (2.5 cm) |
|
Height |
4.4" (11.2 cm) |
| Model | FX45-U1-U3-XC |
|
Maximum Output Kilowatt Rating |
10.8/15kW |
|
Voltage |
240/208 |
|
Phase |
1/3 |
|
Temperature Adjustment Range |
104-194°F |
|
Pre-Setting Time Adjustment Range |
0-12 Hours |
|
Width |
3.4" (8.6 cm) |
|
Depth |
1" (2.5 cm) |
|
Height |
4.4" (11.2 cm) |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Technical
Installation and Operation Manual
Harvia-Spirit-Sauna-Heater-IOM.pdf
Harvia-Fenix-and-Xenio-Control-IOM.pdf
Spec Sheet
Harvia-Spirit-Sauna-Heater-SP90E-Spec-Sheet.pdf
Element Requirements
Harvia-Element-Requirements.pdf
Stone Requirements
Harvia-Stone-Requirements.pdf
