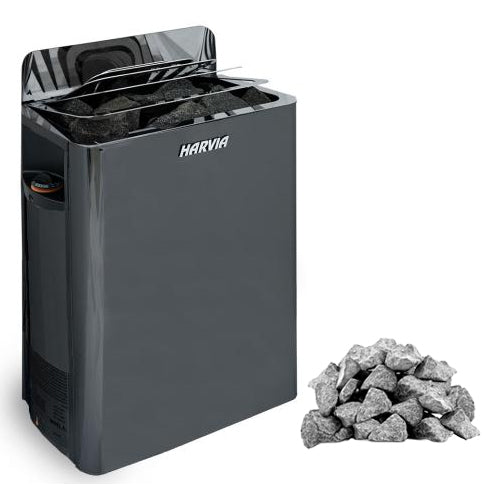

The Wall Series 8kW Sauna Heater Package, Built-In Controls, Black. Includes SW80 Heater and Stones.
The Wall 8kW Sauna Heater Package with Built-In Controls by Harvia comes complete with The Wall SW80 Sauna Heater and Sauna Stones. This compact heater package combines modern design with flexible installation options, providing improved air circulation and steady warmth in sauna rooms from 177 to 431 cubic feet (CF).
The convenient top-mounted illuminated control allows you to operate the heater in low-light. This stylish heater was built for maximum flexibility with the control panel able to be configured on either the left or right side of the unit to best accommodate the design of your sauna room.
🔑 Key Features

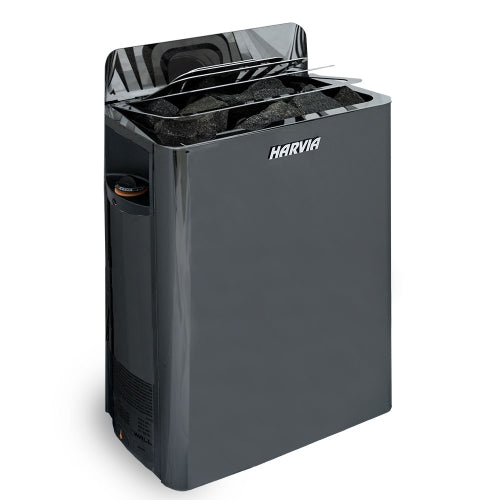

The Wall SW80 Sauna Heater
- Wall-mounted design
- Built-in controls
- Control panel can be installed on the left or right side of the heater
- Smart design enables air circulation and steady warmth
- Option to integrate heater in the sauna bench
- Black steel construction
- Designed, engineered, and made in Finland
- 44 pound stone capacity
- Dimensions: 17"W (43.2 cm) x 10.2"D (25.9 cm) x 27.6"H (70.1 cm)
- Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

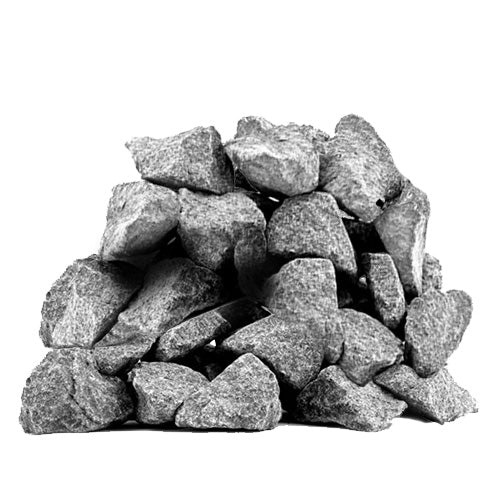

Sauna Stones
- Olivine diabase sauna stones
- Split-face shape
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)
Includes
The Wall SW80 Sauna Heater
- Sauna Heater
- Installation and Operation Manual
- 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
- 44 lbs of 2" to 4" (5-10 cm) Split-Face Stones
Specifications
| Model | THE WALL SW80 PKG |
| Model | SW80 |
|
Room Size |
177-431 cu. ft. |
|
Wattage Rating |
8000 |
|
Voltage |
240 |
|
Phase |
1 |
|
Amperage |
33.4 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
8 |
|
Safety Listing |
ETL (Electrical Testing Laboratories) |
|
Minimum Ceiling Height |
75" (190 cm) |
|
Safety Distance (Front to Back) |
See Installation and Operation Manual |
|
Safety Distance (Left to Right) |
See Installation and Operation Manual |
|
Stone Capacity |
44 lbs (20 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
17" (43.2 cm) |
|
Depth |
10.2" (25.9 cm) |
|
Height |
27.6" (70.1 cm) |
|
Weight |
32.5 lbs (14.7 kg) |
|
Shipping Weight with Sauna Stones |
76.5 lbs (34.7 kg) |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Technical
Installation and Operation Manual
Harvia-The-Wall-Sauna-Heater-IOM.pdf
Spec Sheet
Harvia-The-Wall-Sauna-Heater-SW80-Spec-Sheet.pdf
Declaration of Conformity
Harvia-Sauna-Heaters-DOP.pdf
Element Requirements
Harvia-Element-Requirements.pdf
Stone Requirements
Harvia-Stone-Requirements.pdf
