HUUM HIVE Series 12.0kW Sauna Heater Package

Sale price$4,836.00

Questions? Speak To an Expert at +1 (616) 282-2366

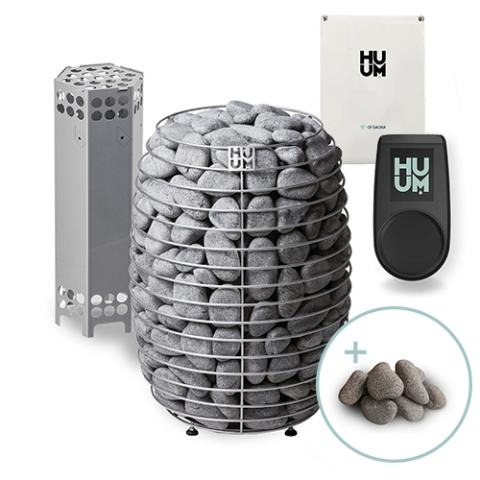

The HUUM HIVE 12STUX sauna heater package features all the necessities that will give your sauna space a touch of modern elegance. This all-inclusive package includes the HIVE 12kW sauna heater, UKU control with optional Wi-Fi, UKU extension box, and 528 lbs of sauna stones. It is engineered for sauna rooms up to 883 cubic feet (CF).

Precision-engineered and crafted in Estonia for a true European sauna experience.

Feature

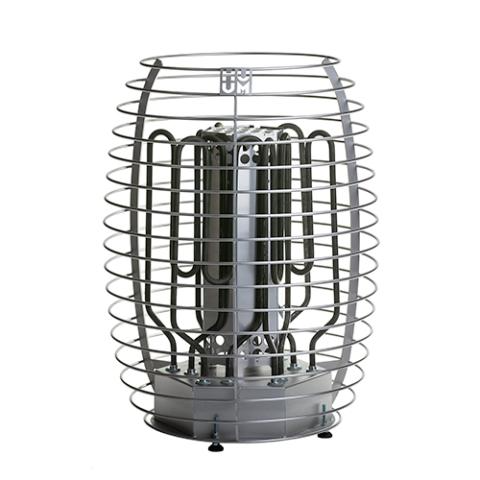

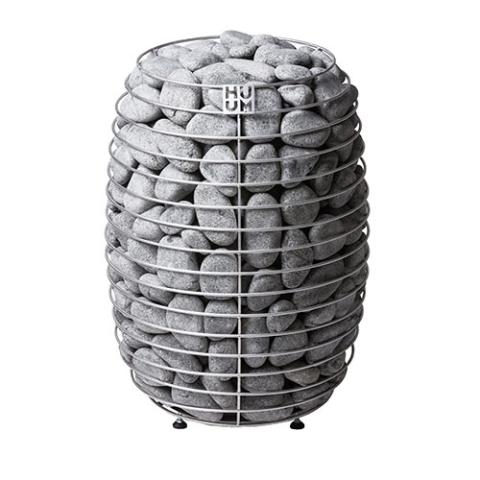

HIVE 12.0kW Sauna Heater

  • Elegant design
  • Suitable for commercial use
  • 240V/1PH operation
  • For sauna rooms from 424 to 883 cu. ft.
  • Works with UKU controls
  • Works with UKU extension box
  • Large 528 pound stone capacity
  • Direct contact between stones and heating elements
  • More exposed stones create a longer and milder heat
  • Stainless steel construction
  • Stainless steel, industrial quality heating elements
  • Floor model with adjustable legs
  • Air tunnel shortens heat-up time and increases life of heating elements
  • SGS listed
  • Designed, engineered, and made in Estonia
  • Dimensions: 22"Diameter (560mm) x 29.5"H (750mm)
  • Limited 5-year warranty (excluding elements)

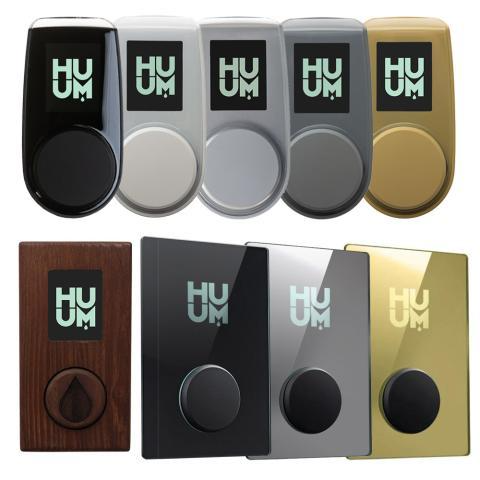

UKU Control

  • Sleek black control display panel
  • Multiple color options available (additional charges apply)
  • Settable on/off, time, temperature, and delay
  • Settable temperature range of 104-230°F
  • Delayed start up to 48hrs in advance

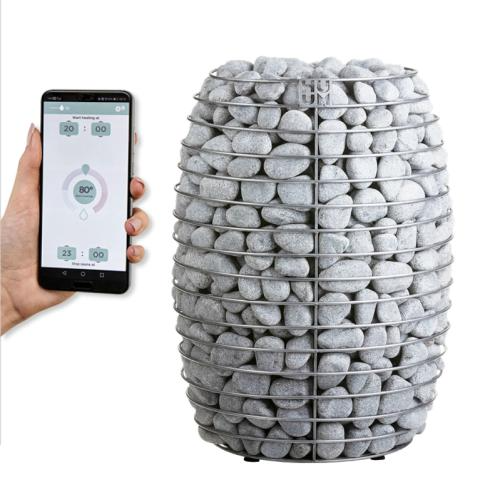

  • Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
  • 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
  • Inside/outside sauna room installation
  • Optional smart heating setting
  • Available decorative control display panels
  • Displays set temperature and room temperature
  • Temperature sensor
  • Door sensor to keep the heat inside the room
  • Remotely located main control module
  • Connects to lights and ventilation
  • Overheat protection
  • Child safety lock
  • Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
  • Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
  • Limited 5-year warranty

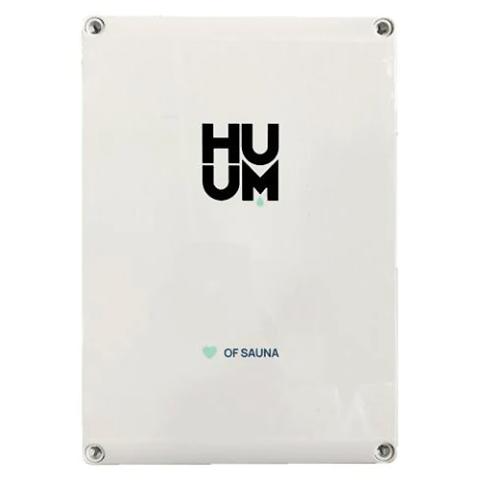

UKU Extension Box

  • For use with UKU controls
  • For heaters over 12kW
  • Dimensions: 7"W (178mm) x 4"D (101mm) x 10"H (254mm)
  • Limited 5-year warranty

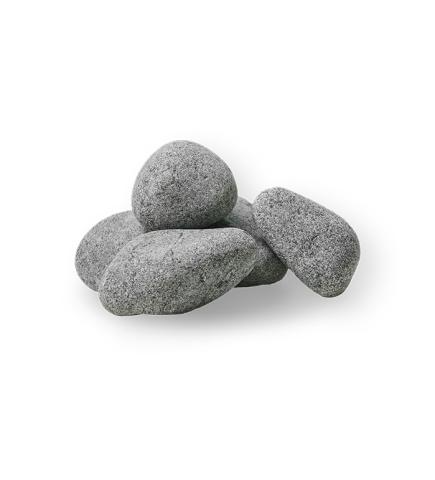

Stones 24

  • Olivine diabase sauna stones
  • Rounded shape to complement heater design
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

Includes

HIVE 12.0kW Sauna Heater

  • 12.0kW Sauna Heater
  • Adjustable Legs
  • Pre-Installed HIVE Air Tunnel
  • Installation and Operation Manual
  • 5-Year Limited Warranty (Excluding Elements)

UKU Control

  • Black Control Console
  • Main Control Module
  • Temperature Sensor
  • Door Sensor
  • Control Display Panel Cable
  • Temperature Sensor Cable
  • Door Sensor Cable
  • Installation and Operation Manual
  • 5-Year Limited Warranty

UKU Extension Box

  • Extension Box
  • Installation and Operation Manual
  • 5-Year Limited Warranty

Stones 24

  • 528 lbs of 2" - 4" (5-10 cm) Round Sauna Stones

Specifications

Model HIVE 12STUX PKG
HIVE 12
Kilowatt Rating 12.0kW
Minimum Cubic Feet 424
Maximum Cubic Feet 883
Heater Weight 49.1 lbs
Shipping Weight with Sauna Stones 577.1 lbs
240V, Single-Phase Amperage 50
Circuit Breaker 30 + 30
Wire Size AWG 10 + 10
Diameter 22" (560mm)
Height 29.5" (750mm)
UKU Control
Minimum Temperature Setting 104°F
Maximum Temperature Setting 230°F
Shipping Weight 20 lbs
Console Dimensions
Width 2.2" (55mm)
Depth 0.9" (22mm)
Height 4.1" (105mm)
Main Module Dimensions
Width 3.5" (90mm)
Depth 2.3" (58mm)
Height 5.6" (142mm)
Display Panel Cable
Length 9.8 ft
AWG 22
Temp Sensor Cable
Length 16.4 ft
AWG 24
Door Sensor Cable
Length 16.4 ft
AWG 24
UKU Ext Box
Voltage 240
Circuit Breaker Amperage 2 x 63
Weight 3.25 lbs
Width 7" (178mm)
Depth 4" (101mm)
Height 10" (254mm)

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

HUUM HIVE Sauna Heater IOM.pdf

HIVE Elements Required

HIVE Warranty

UKU Installation and Operation Manual

UKU Install Diagram

UKU Installation Video

UKU Warranty

Stone Requirements

Size Your Sauna
