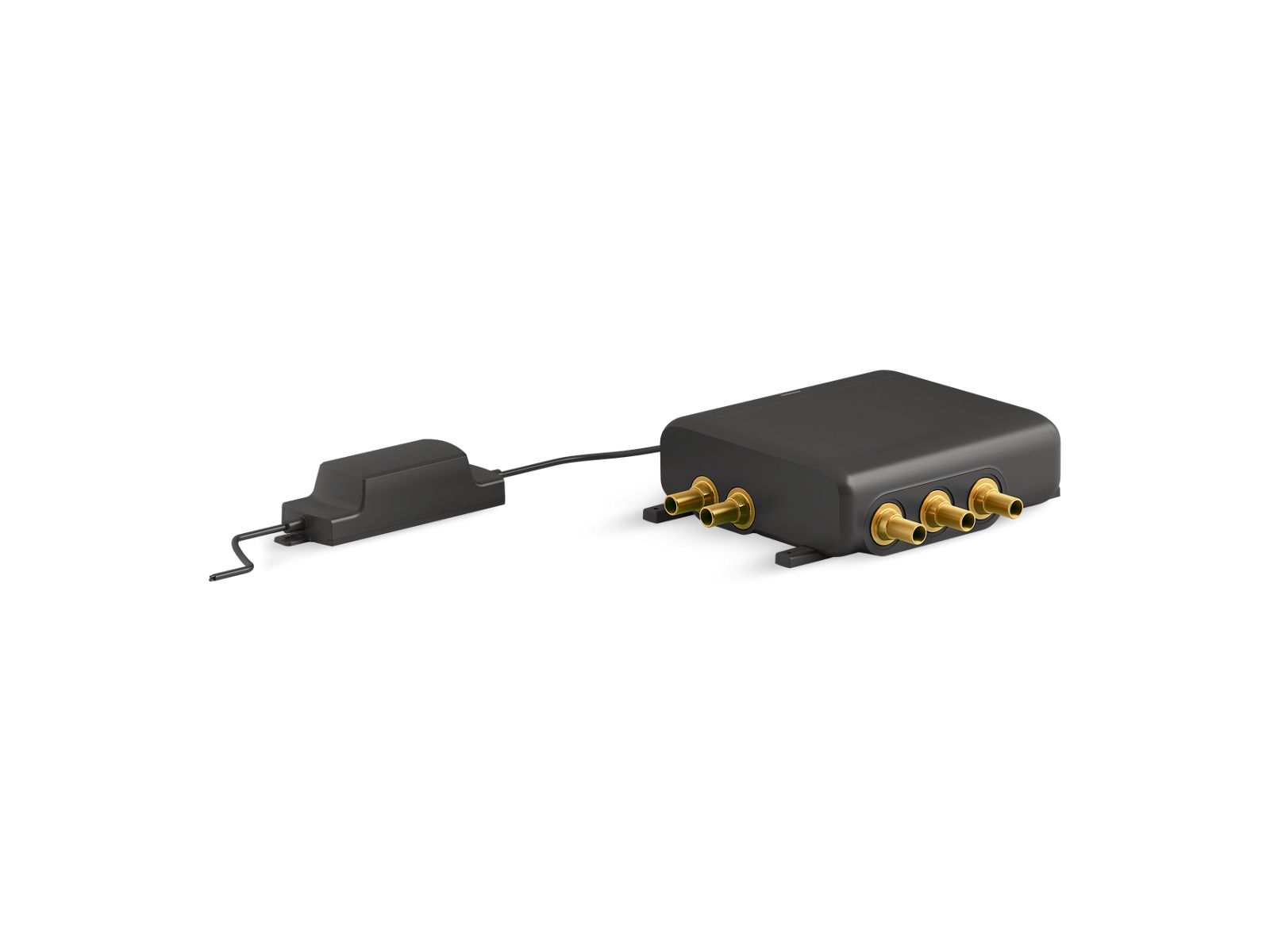

Kohler 28210-NA Anthem® Digital Thermostatic Valve 30T

Digital thermostatic technology provides accurate, precise, and consistent temperature in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem Digital Control. Its easy plug-and-play design makes installation simple. With three independently controllable outlet ports, this valve is suited for applications where three shower outlets are required. Optional built-in Eco Mode lets you use just one outlet at a time to conserve water.

🔑 Key Features:

• Digitally controlled thermostatic mixing valve.
• Antiscald protection.
• Built-in temperature and flow control.
• Use with the Konnect® app to unlock additional Kohler-developed experiences, system features, and system updates.
• Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with a maximum flow rate of 9.5 gpm (36 lpm) from one outlet.
• Includes optional flow restrictor, limiting total flow rate to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC compliance is desired.
• 1/2" inlet with brass tube connections
• 1/2" outlet with brass tube connections

📦 Includes:

• Three-Port Digital Thermostatic Valve
• Flow Restrictor

Specifications

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Kohler K-28212-NA IOM.pdf

https://techcomm.kohler.com/techcomm/pdf/1430527-2.pdf
