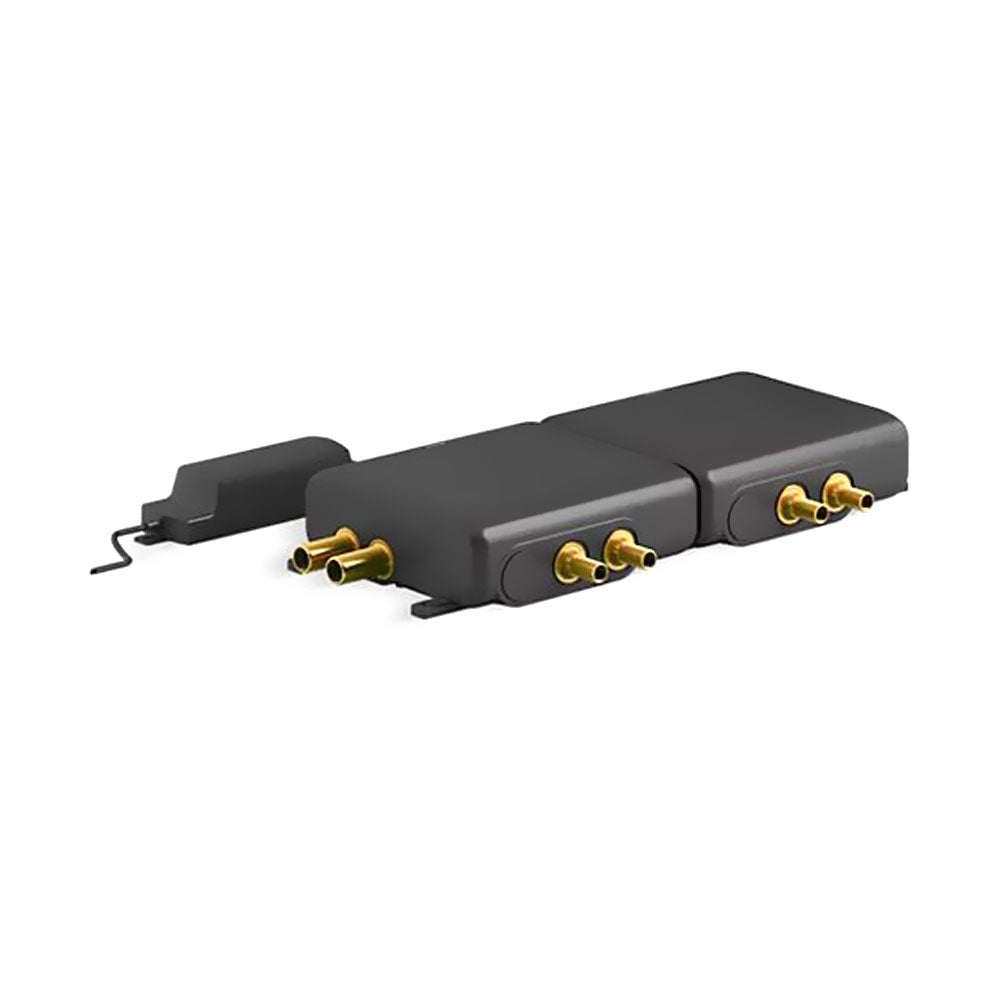

Kohler 28211-NA Anthem® 4-port Digital Thermostatic Valve 4OT
Questions? Speak To an Expert at +1 (616) 282-2366
Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve. As an extra safety feature this valve has antiscald protection.
Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. This valve is ideal for applications where four shower outlets are required, offering two different temperature and flow zones.
🔑 Key Features:
- Digitally controlled thermostatic mixing valve.
- Antiscald protection.
- Built-in temperature and flow control.
- Allows for two different temperature and flow zones in your shower.
- Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.
- Reinforced engineering-grade thermoplastic body.
📦 Includes:
- Anthem Four port digital thermostatic valve
- filter screens (Qty 2)
- Jumper
- Mounting Hardware
- Power Supply Unit
Specifications
| Model | 28211-NA |
|---|---|
| Mount | Wall-Mount |
| Volts | 120VAC |
| AMPS | 1 |
| Material | Engineering-grade thermoplastic casing |
| Color / Finish | Black |
| Length | 28.5" |
| Weight | 9.41 lbs |
| Width | 11.813" |
| Depth | 8-1/4 (210MM) |
| Height | 3.438" |
| Dimensions | 20-3/8"W x 8-1/4"D x 3"H |
| Warranty | 5 Year Limited Warranty |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
https://techcomm.kohler.com/techcomm/pdf/1430528-2.pdf
