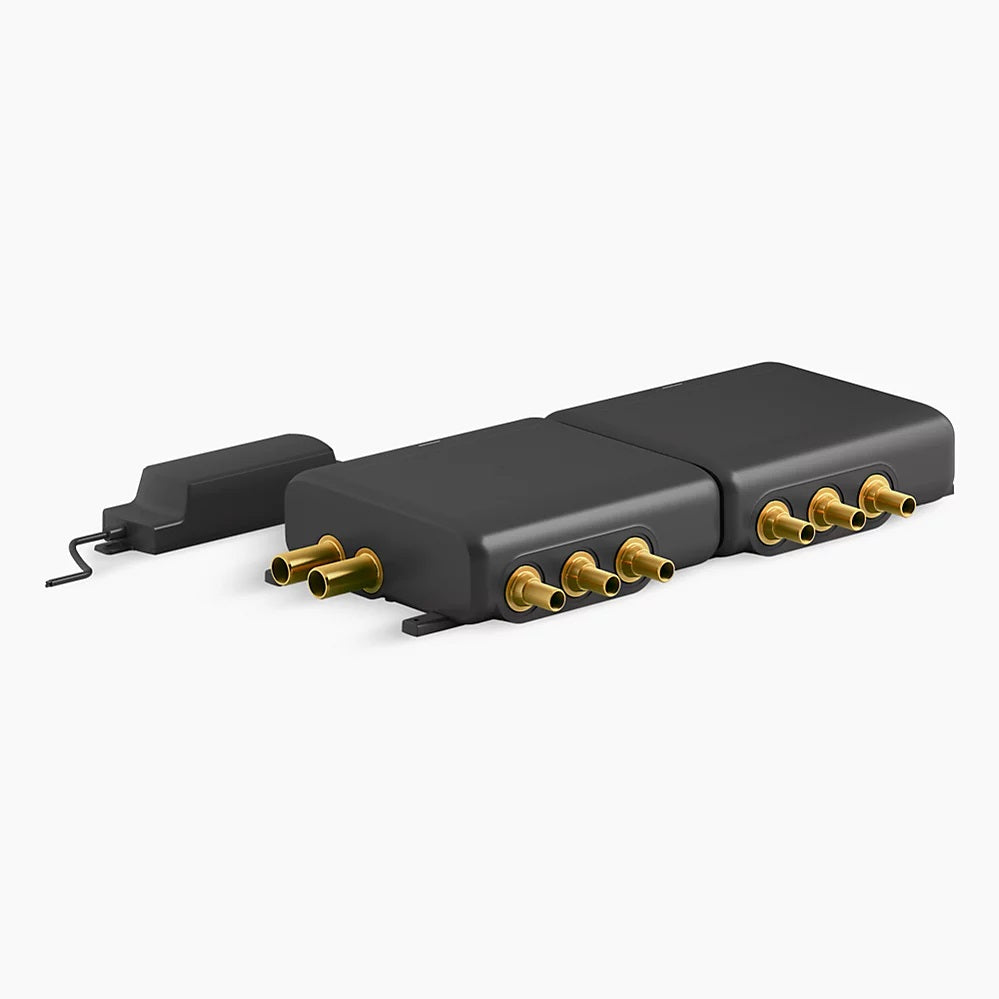

Kohler 28212-NA Anthem® 6-Port Digital Thermostatic Valve 6OT
Questions? Speak To an Expert at +1 (616) 282-2366
This valve is ideal for applications where six shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. As an extra safety feature this valve has antiscald protection.
Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.
🔑 Key Features:
- Digitally controlled thermostatic mixing valve.
- Antiscald protection.
- Built-in temperature and flow control.
- Allows for two different temperature and flow zones in your shower.
- Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with a maximum flow of 9.5 gpm (36 lpm) from one outlet.
- Reinforced engineering-grade thermoplastic body.
📦 Includes:
- Anthem Six-Port digital thermostatic valve
- filter screens (Qty 2)
- Jumper
- Mounting Hardware
- Power Supply Unit
Specifications
| Model | 28212-NA |
|---|---|
| Mount | Wall-Mount |
| Volts | 120VAC |
| AMPS | 1 |
| Material | Engineering-grade thermoplastic casing |
| Color / Finish | Black |
| Weight | 10.38 lbs |
| Width | 11.813" |
| Length | 28.5" |
| Depth | 9-1/16"(230MM) |
| Height | 3.438" |
| Dimensions | 21-1/8"W x 9-1/16"D x 3"H |
| Warranty | 5 Year Limited Warranty |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
https://techcomm.kohler.com/techcomm/pdf/1430528-2.pdf
