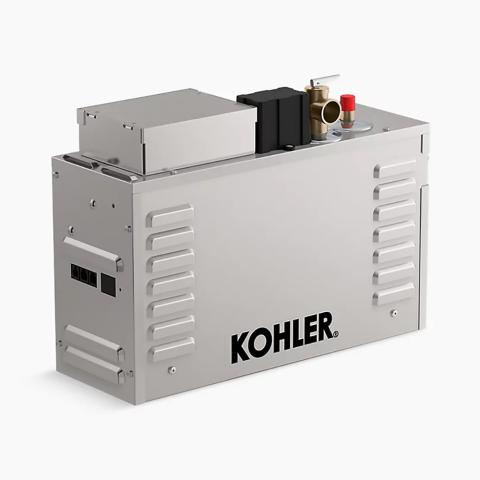

Kohler 32326-NA Invigoration 2.0 Steam Shower 9kW Generator

Steam in 60 Seconds: Kohler Invigoration™ Series 9kW Steam Shower Generator (32326-NA)

Escape the stress of everyday life in just 60 seconds with the Kohler Invigoration™ Series 9kW steam shower generator. Designed to transform your personal shower into a private wellness retreat, the 32326-NA delivers the purifying benefits of steam—helping to cleanse your body of toxins while promoting respiratory comfort and deep relaxation.

This advanced generator features Kohler’s Power Clean™ system, which automatically flushes sediment through the steam head—no manual maintenance required. Enjoy a consistent steam flow and minimized temperature fluctuations, all managed by an intuitive interface that controls time, temperature, and operation with ease.

Eco-conscious and efficient, this generator uses approximately one gallon of water per 20-minute session—far less than a typical shower. The insulated stainless-steel housing retains heat effectively while staying safe to the touch. For added safety, the unit includes an automatic shut-off after 20 minutes if not reactivated.

Version 2.0 Enhancements include:

• Precision water level control for optimized steam production and improved durability

• Revised ventilation design for simplified installation and zero clearance on one side

---

🔑 Key Features:

• Fast Response® Technology – produces steam in just 60 seconds

• Power Clean™ one-touch automatic cleaning system

• Insulated stainless steel – corrosion and tarnish resistant

• Eco-friendly – uses approx. 1 gallon of water per 20-minute session

• Safe-touch exterior for added user protection

• Precision water level control extends performance and longevity

• Compact design for easy installation

• Ideal for steam rooms up to 240 cu. ft.

• Voltage: 240V

• Dimensions: 19.25"W x 8.38"D x 12.5"H

• 3-Year Limited Warranty

---

📦 What's Included:

• Kohler Invigoration™ 9kW Steam Shower Generator

• Installation & Operation Manual

• 3-Year Limited Warranty

Specifications

Model	32326-NA
Kilowatt Rating	9kW
Maximum Cubic Feet	240
Voltage	240
Amperage	45
Weight	52 lbs
Length	22.7"
Width	7.1"
Depth	8.38" (213mm)
Height	14.4"

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Question: Will the new generator work with the current controllers and cables?
Answer: Yes, the new generator will work with the current controllers, the same as they worked with the previous generator. Additionally, it requires the same cable/cable connections.

Question: Is the sizing and kilowatt rating of the new generator the same as the previous generator?
Answer: Yes, the sizing and kilowatt rating is the same between the previous generator and the new generator.

Question: Can I complete the shower space and install the generator after?
Answer: Yes, the homeowner can complete their shower space by installing plumbing and all the needed components for the generator and have the generator connected at a later time. This allows for the homeowner to still use their shower space in the interim of not having the generator installed.

Question: Will customers existing order for the 1.0 generator be transitioned to the 2.0 generator?
Answer: Yes, the release of the new skus will allow Customer Service to contact customers and transfer existing open orders from 1.0 to 2.0 generators.

Question: Will the pricing of the 2.0 generator be the same as the 1.0 generator?
Answer: Yes, the pricing of the 2.0 generator will match the pricing of the 1.0 generator for 2024.

Question: Does the physical size of the 2.0 generator change from the size of the 1.0 generator?
Answer: No, the generator footprint is the same on both versions.

Kohler Steam Generator IOM (5, 7, 9, 11, 18, 22).pdf

Kohler Steam Generator Warranty.pdf

https://www.us.kohler.com/us/static/warrantyForm.jsp

https://techcomm.kohler.com/techcomm/pdf/1601844-2.pdf

Inspiration

Invigoration Series(TM) Steam Generators and Controls
