Kohler 32334-NA Invigoration® 26 KW Steam Shower Generator

Break free from daily stress in just 60 seconds with the Kohler Invigoration® Series 32334-NA 26kW Steam Shower Generator. Designed to bring the purifying power of steam to your personal shower, this dual-generator system creates a spa-like environment that supports full-body detoxification, respiratory relief, and deep relaxation—all from the comfort of home.

Powered by Fast-Response® Technology, the generator delivers consistent steam with minimal temperature fluctuations, providing a smooth and uninterrupted experience. The Power Clean™ system automatically flushes sediment through the steam head, eliminating the need for manual maintenance at the push of a button.

Eco-conscious by design, this steam generator uses approximately one gallon of water per 20-minute session, significantly less than a traditional shower. Version 2.0 enhancements include precision water level control for optimized steam output and performance, as well as zero clearance installation capability for easier placement.

---

🔑 Key Features:

• Delivers steam in 60 seconds with Fast-Response® Technology

• Dual 13kW units deliver a total output of 26kW, ideal for steam rooms up to 894 cu. ft.

• Power Clean™ system allows touch-button sediment flushing through the steam head

• Constructed with insulated stainless steel for durability and heat retention

• Corrosion- and tarnish-resistant housing

• Precision water level control for improved steam consistency and generator longevity

• Safe-to-touch outer casing with auto shutoff after 20 minutes

• Eco-efficient operation—uses about 1 gallon of water per 20-minute session

• Designed for simplified installation with zero clearance on one side

• Compatible with Kohler digital control systems (sold separately)

• Available in 240V (per generator)

📐 Dimensions (per generator):
19.37" W x 14" D x 13.54" H (492mm x 356mm x 344mm)

---

📦 What’s Included:

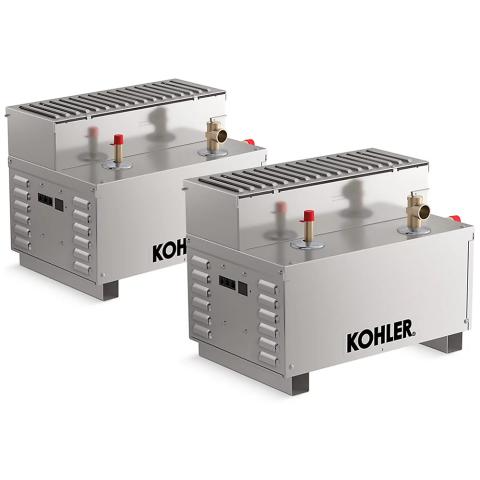

• (2) 13kW Steam Shower Generators (combined 26kW output)

• Installation & Operation Manual

• 3-Year Limited Warranty

Specifications

Model	32334-NA
Kilowatt Rating	26kW
Maximum Cubic Feet	894
Voltage	240 (per generator)
Amperage	59 (per generator)
Length	29.625"
Weight	95.4 lbs
Width	25.125"
Depth	14" (356mm per generator)
Height	15.813"

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Question: Will the new generator work with the current controllers and cables?
Answer: Yes, the new generator will work with the current controllers, the same as they worked with the previous generator. Additionally, it requires the same cable/cable connections.

Question: Is the sizing and kilowatt rating of the new generator the same as the previous generator?
Answer: Yes, the sizing and kilowatt rating is the same between the previous generator and the new generator.

Question: Can I complete the shower space and install the generator after?
Answer: Yes, the homeowner can complete their shower space by installing plumbing and all the needed components for the generator and have the generator connected at a later time. This allows for the homeowner to still use their shower space in the interim of not having the generator installed.

Question: Will customers existing order for the 1.0 generator be transitioned to the 2.0 generator?
Answer: Yes, the release of the new skus will allow Customer Service to contact customers and transfer existing open orders from 1.0 to 2.0 generators.

Question: Will the pricing of the 2.0 generator be the same as the 1.0 generator?
Answer: Yes, the pricing of the 2.0 generator will match the pricing of the 1.0 generator for 2024.

Question: Does the physical size of the 2.0 generator change from the size of the 1.0 generator?
Answer: No, the generator footprint is the same on both versions.

Kohler Steam Generator IOM (13, 15, 26, 30).pdf

Kohler Steam Generator Warranty.pdf

https://www.us.kohler.com/us/static/warrantyForm.jsp

https://techcomm.kohler.com/techcomm/pdf/1601844-2.pdf

Inspiration

Invigoration Series(TM) Steam Generators and Controls
