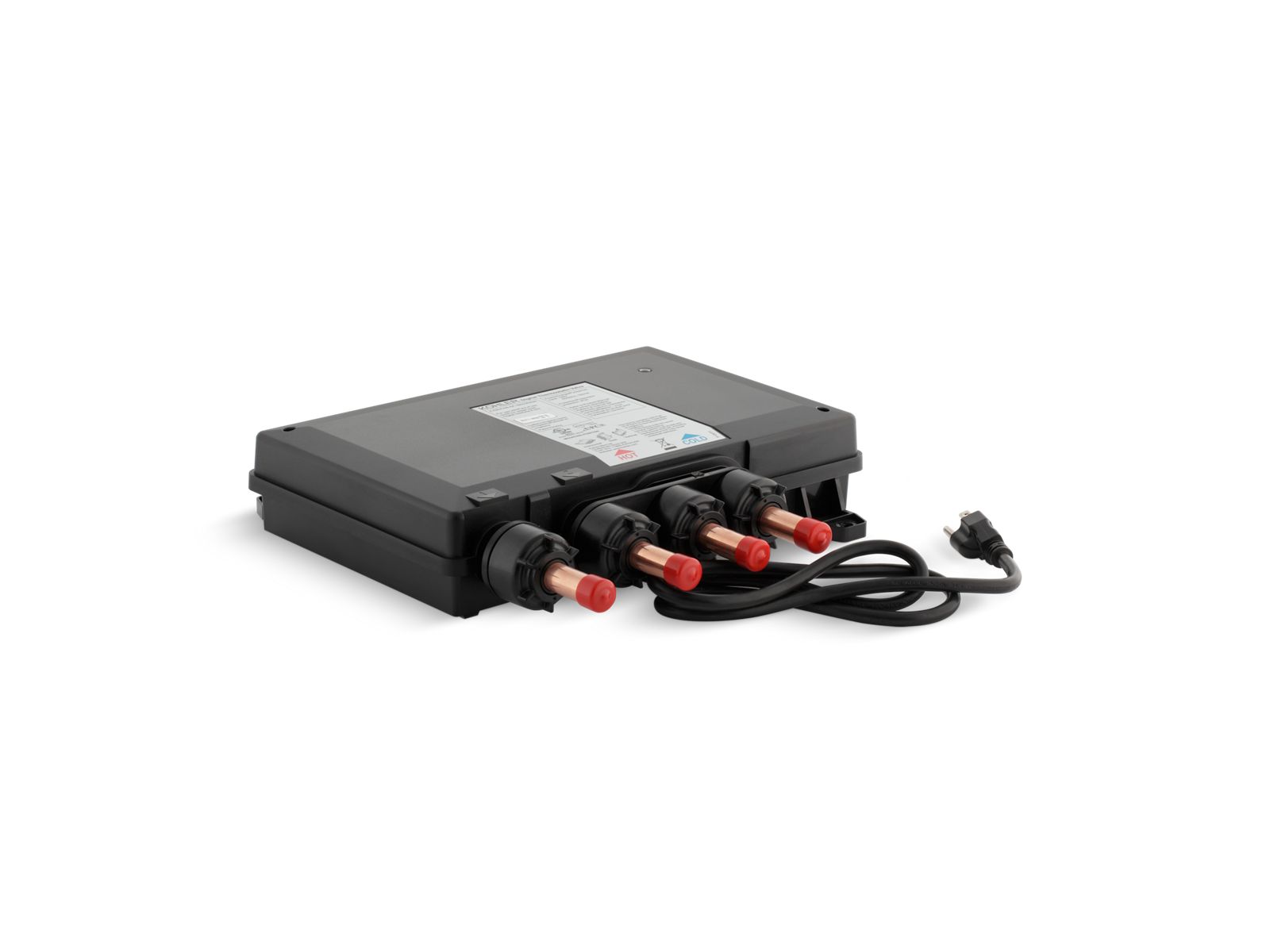

Kohler 528-K1-NA DTV+™ Digital 2 Port Thermostatic Valve
Questions? Speak To an Expert at +1 (616) 282-2366
This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV+ digital system, and its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. For custom showering applications, this valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control. Additionally, with the DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time.
🔑 Key Features:
- Designed to work with a DTV+ digital system either individually or with a second digital valve (two, three, or six-port valve).
- For use in showering and/or bathing applications.
- Up to 13 gallons per minute (49.2 L) flow rate with maximum flow of 8 gallons per minute (30.3 L) from one outlet.
- 1/2-inch hot/cold supply inlets.
- Pre-wired with three-prong plug for connection to 110v AC receptacle
- Equipped with BLUETOOTH® technology allowing communication through the KOHLER Mode App
Specifications
| Model | 528-K1-NA |
|---|---|
| Mount | Wall-Mount |
| Material | Plastic |
| Color / Finish | Black |
| Product Weight | 5.928 lbs |
| Volts | 120VAC |
| Amps | 15 |
| Length | 18.75" |
| Width | 5.75" |
| Depth | 12-1/2"(318MM) |
| Height | 4.75" |
| Dimensions | 13-3/8"W x 12-1/2"D x 2-11/16"H |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
Kohler K-528-K1-IOM.pdf
https://techcomm.kohler.com/techcomm/pdf/1381955-2.pdf https://techcomm.kohler.com/techcomm/pdf/1240338-2.pdf
