Kohler 557-K1-NA DTV+™ Digital 3 Port Thermostatic Valve
Questions? Speak To an Expert at +1 (616) 282-2366

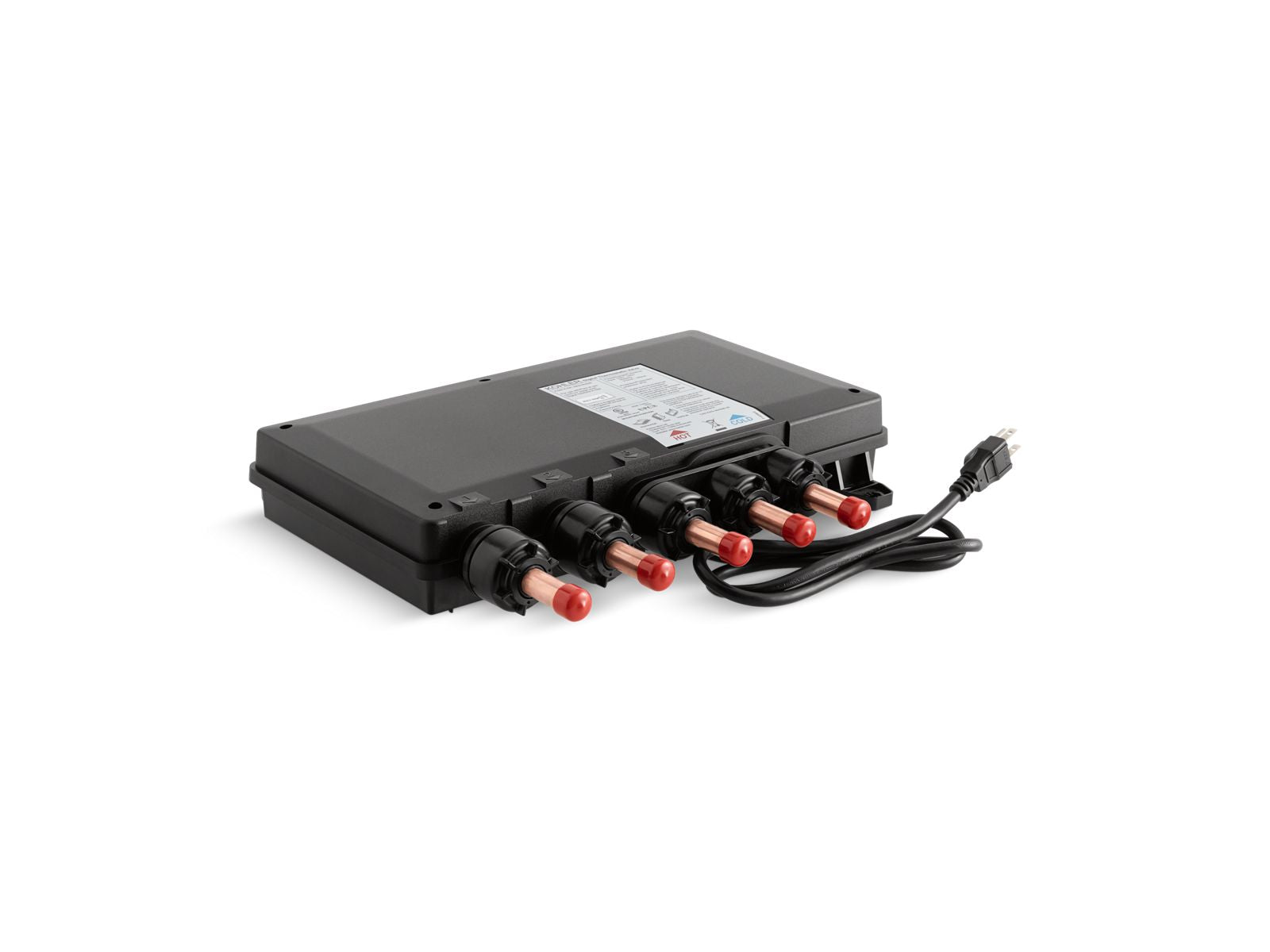

The Kohler DTV+ Three-Port Digital Thermostatic Valve elevates your showering experience through the power of technology, providing accurate, precise, and consistent temperature control. This precision-engineered, best-in-class valve is designed for use with the DTV+ Digital System and its easy plug-and-go design makes installation simple. With three independently controllable ports, this valve is suited for applications where up to 3 shower outlets are required.
Additionally, this valve can be used in combination with a second digital valve to provide either additional outlets or to deliver 2 different water temperatures at the same time.
🔑 Key Features:
- Digitally controlled thermostatic mixing valve
- Easy plug-and-go design
- Antiscald protection
- High-temperature limit setting for additional protection
- Maximum flow rate of 13 gpm (49.2 lpm) at 45 psi (3.1 bar), with a maximum flow rate of 8 gpm (30.3 lpm) from one outlet
- 1/2" inlet and outlet with copper tube connections
- Dimensions: 15.1"W (38 cm) x 2.7"D (7 cm) x 13.4"H (34 cm)
- Limited 5-year warranty
📦 Includes:
- Thermostatic Valve
- Installation and Operation Manual
- 5-Year Limited Warranty
Specifications
| Model | 557-K1-NA |
|---|---|
| Mount | Wall-Mount |
| Construction Material | Engineering-Grade Thermoplastic |
| Maximum Flow Rate | 13 gpm |
| Inlet Connection | 1/2" NPT |
| Outlet Connection | 1/2" NPT |
| Voltage | 120 |
| Amperage | 15 |
| Hertz | 60 |
| Length | 18.75" |
| Width | 5.75" |
| Depth | 2.7" (7 cm) |
| Weight | 5.928 lbs |
| Height | 4.75" |
