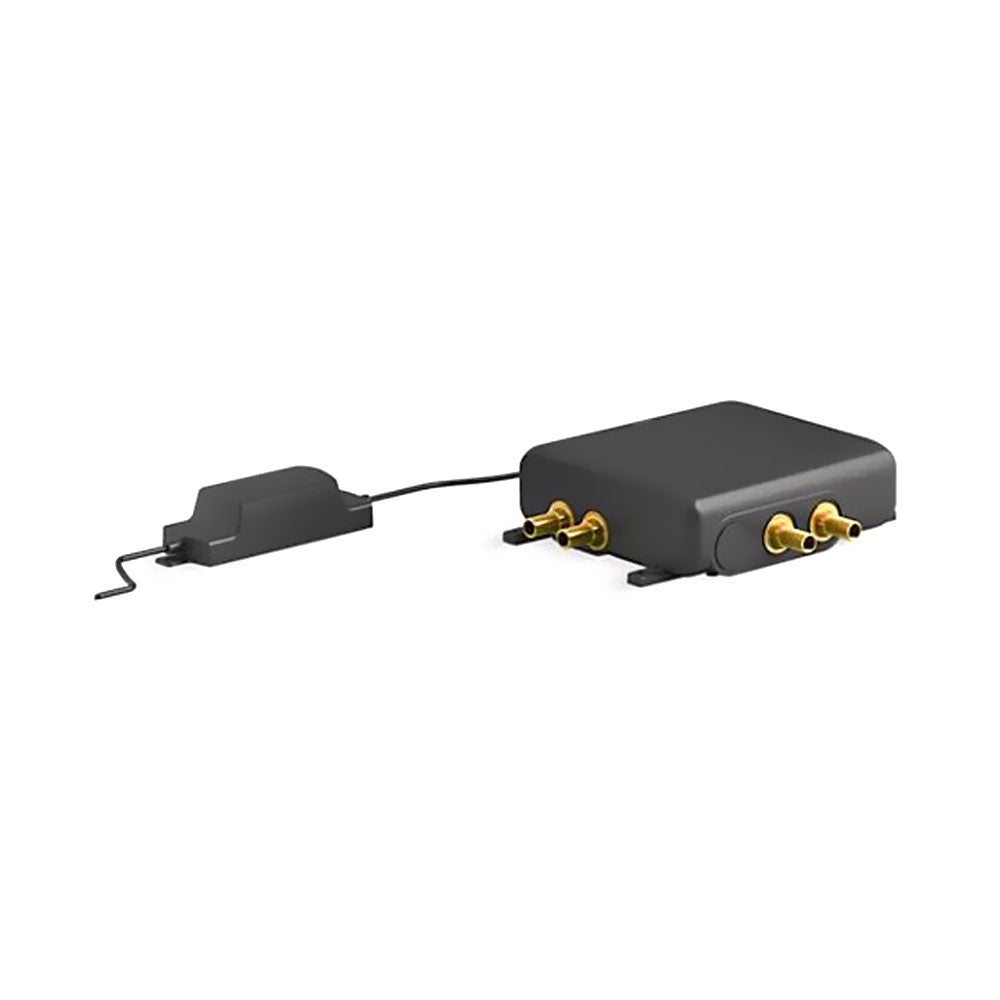

Kohler 28209-NA Anthem®, 2-port Digital Thermostatic Valve 2OT

Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

🔑 Key Features:

• Digitally controlled thermostatic mixing valve.
• Antiscald protection.
• Built-in temperature and flow control.
• Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
• Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.
• Two independently controllable ½" outlets with brass tube connections.

📦 Includes:

• Digital Thermostatic Valve
• Filter screens (2)
• Jumper
• Mounting hardware
• Power supply unit

Specifications

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Kohler K-28209 IOM.pdf
https://techcomm.kohler.com/techcomm/pdf/1430527-2.pdf
