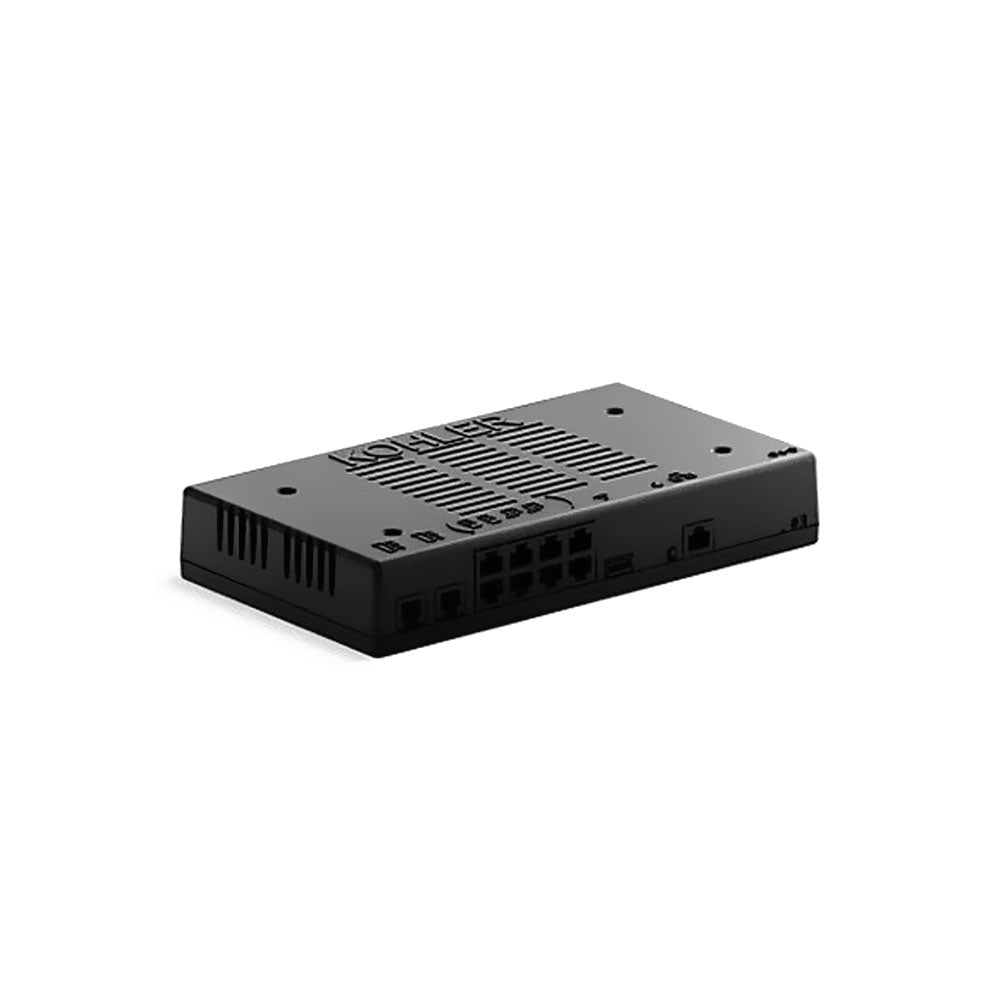

Kohler DTV+ Series System Control Module
Questions? Speak To an Expert at +1 (616) 282-2366

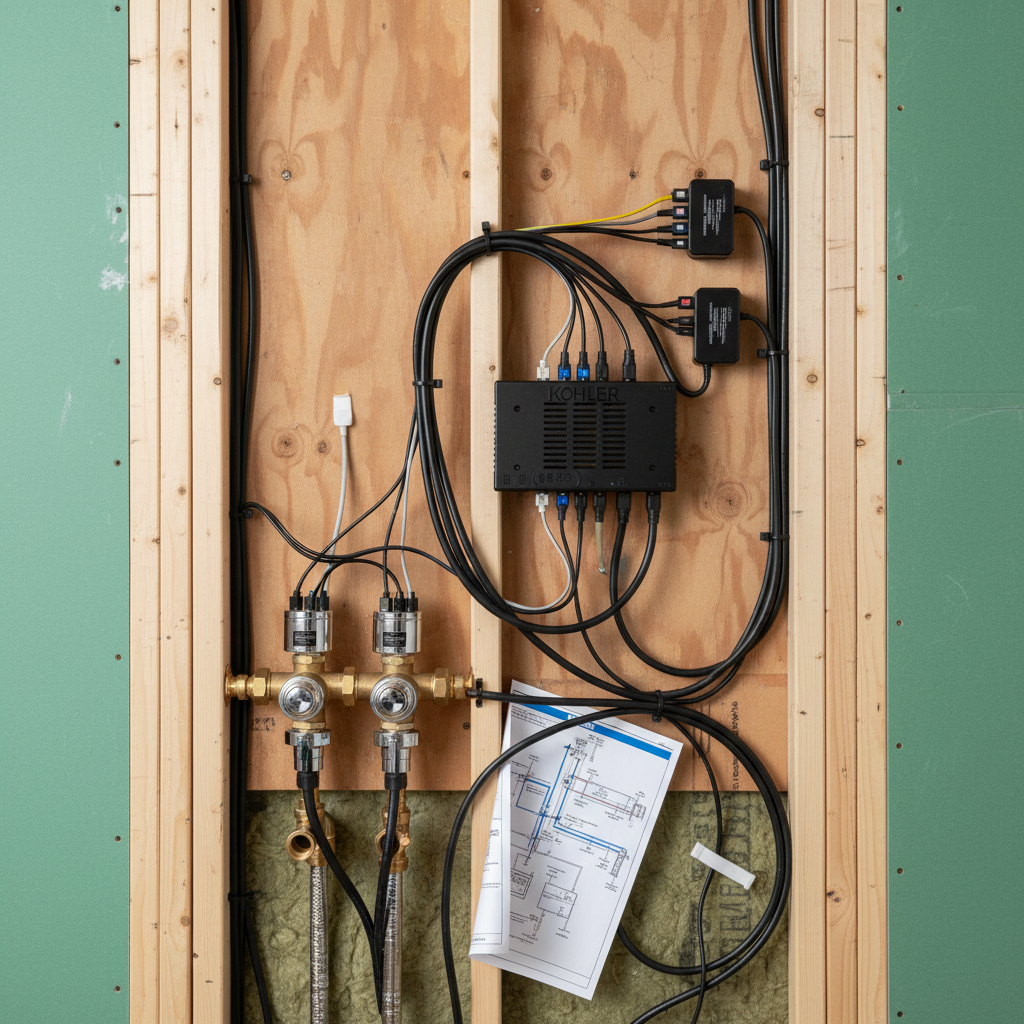

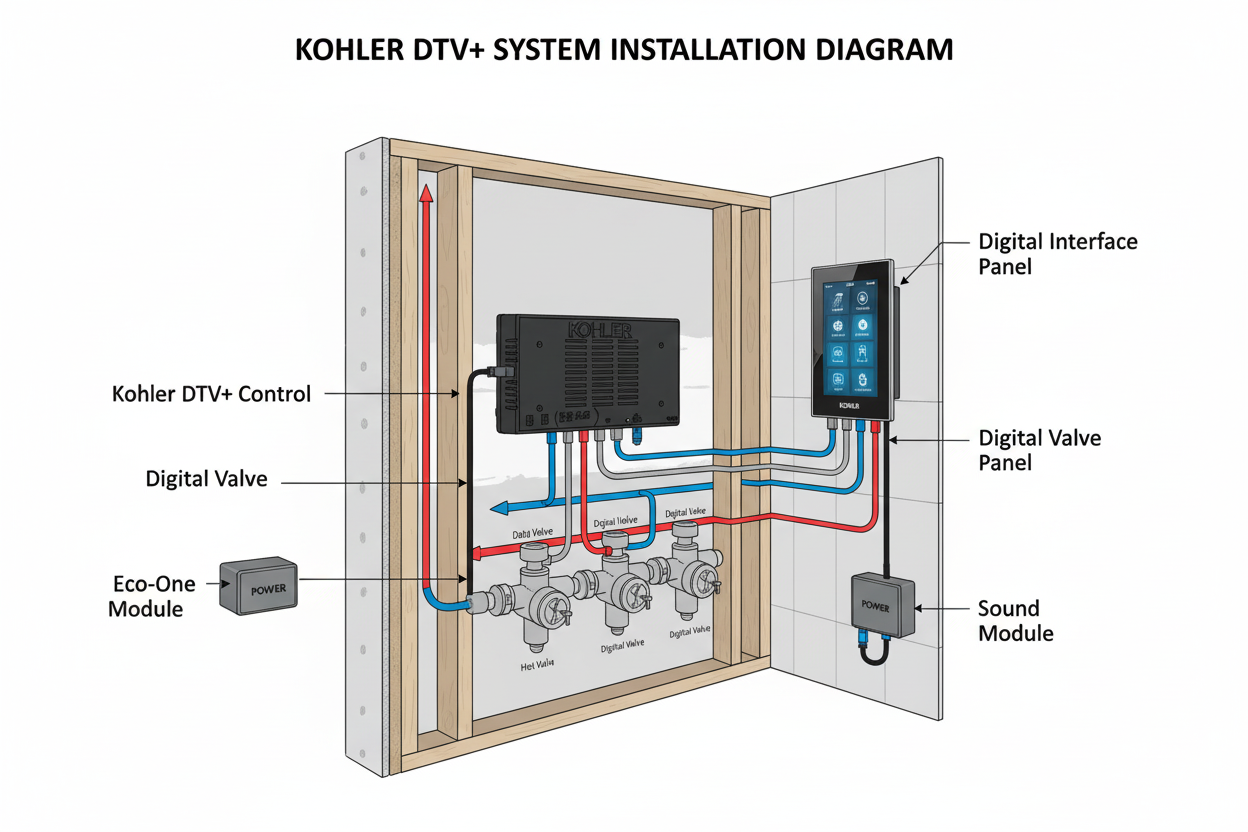

The DTV+ system controller acts as the wiring center and "brain" for the DTV+ showering system, providing connections for every component and powering the digital interfaces. Every DTV+ system, at a minimum, requires one K-99693 interface, a K-99694 mount
🔑 Key Features:
- Provides power to the digital interfaces
- Controls digital valves and other connected system devices
- Integrated web pages for system set up
- Automatically checks for software updates (with internet access)
- Two ports for connecting digital valve(s)
- Eight ports for interface(s) and other system componet connections
- 5 year limited warranty
Specifications
| Model | K-99695 |
|---|---|
| Mount | Wall-Mount |
| Material | Reinforced Engineering-grade Thermoplastic |
| Colour / Finish | Black |
| Volts | 120VAC |
| Amps | 15 |
| Weight | 5 lbs |
| Width | 9-1/2" (241mm) |
| Depth | 5-3/8" (137mm) |
| Height | 1-3/4" (44mm) |
| Dimensions | 9-1/2"W x 5-3/8"D x 1-3/4"H |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
K-99695 Installation Manual.pdf
