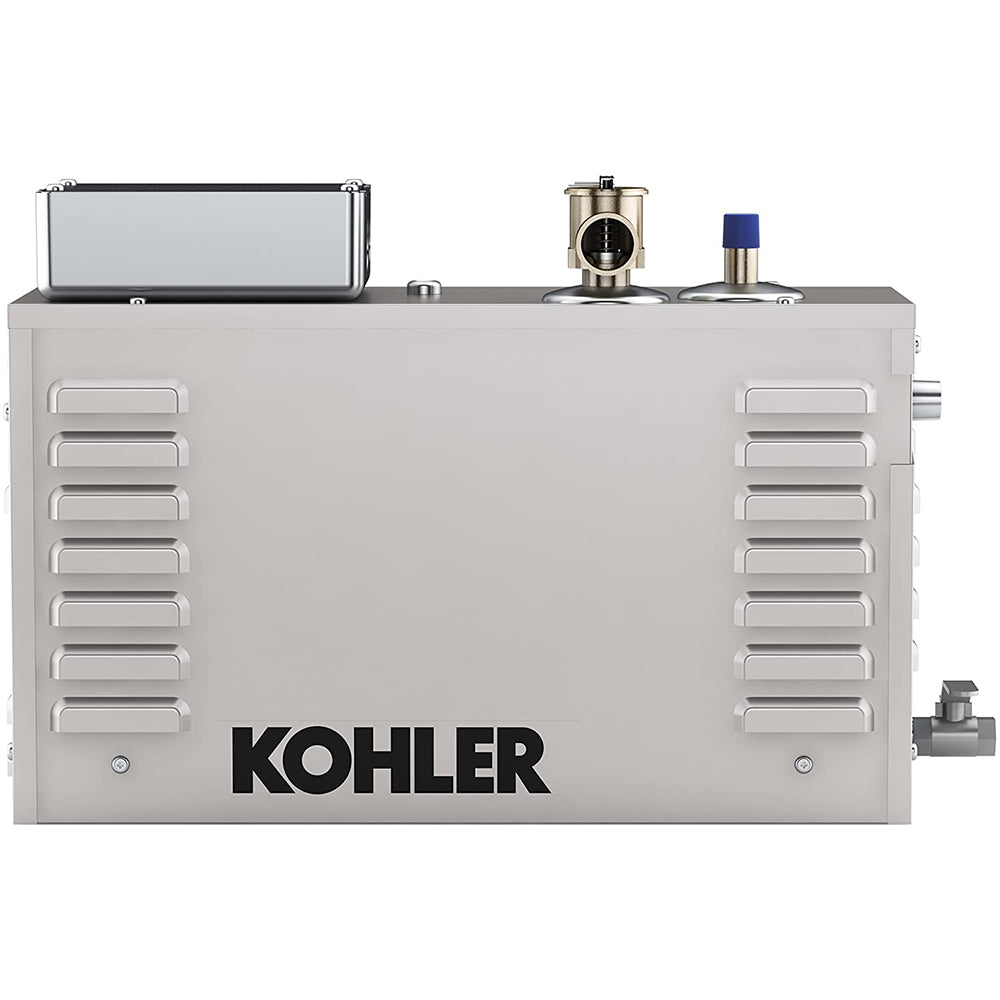

Kohler K-5525-NA Invigoration Series 5kW Steam Generator

Escape to the soothing comfort of your private steam bath, ready in just 60 seconds. With the press of a button, this 5-kilowatt steam generator delivers the purifying benefits of steam, including respiratory relief and cleansing the body of toxins and impurities, to your shower stall or custom shower environment. Fast-Response® Technology
Invigoration Series steam generators produce steam within one minute of pushing the power button.

Constant Steam
This series is designed to produce steam at a consistent rate, which greatly minimizes temperature fluctuations.

Power Clean™ Feature
At the touch of a button, water flushes sediment out of the generator through the steam head. No manual flushing required.

Intuitive Operation
The interface is easy to read and use with clear function indicators for controlling operation, time, and temperature.

Eco-Friendly
The Invigoration Series uses approximately one gallon of water per 20-minute session, which is significantly less water than a traditional shower experience.

Auto Shutoff
To ensure safety, the system automatically shuts down after 20 minutes if not reactivated by the user.

Durable Construction
The generator case is constructed of insulated stainless steel, which maintains the temperature while ensuring the case is safe to the touch.

Peace of Mind
Kohler offers a Three-Year Limited Warranty on steam generators and a Five-Year Limited Warranty on controls.

🔑 Key Features:

• Insulated Stainless Steel

• Fast response technology steam in 60 seconds

• 5kW

• One touch automatic cleaning

• 3 Year limited warranty

📐 Dimensions (per generator):
19.25" (488mm)W x 8.5" (215mm)D x 14.5" (368mm)H

Required for Operation:

• K-5557 or K-5548-k1
• K-5559 Small drain pan

Compatible Steam Control:

• K-5557




---

📦 What’s Included:

• Steam Generator

• Installation & Operation Manual

• 3-Year Limited Warranty

Specifications

Model	K-5525-NA
Kilowatt Rating	5.0
Watts	5000
Voltage	240 (per generator)
Amperage	27 (per generator)
Weight	29 lbs (per generator)
Width	19.25" (488mm per generator)
Depth	8.5" (215mm per generator)
Height	14.5" (368mm per generator)

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Question: Will the new generator work with the current controllers and cables?
Answer: Yes, the new generator will work with the current controllers, the same as they worked with the previous generator. Additionally, it requires the same cable/cable connections.

Question: Is the sizing and kilowatt rating of the new generator the same as the previous generator?
Answer: Yes, the sizing and kilowatt rating is the same between the previous generator and the new generator.

Question: Can I complete the shower space and install the generator after?
Answer: Yes, the homeowner can complete their shower space by installing plumbing and all the needed components for the generator and have the generator connected at a later time. This allows for the homeowner to still use their shower space in the interim of not having the generator installed.

Question: Will customers existing order for the 1.0 generator be transitioned to the 2.0 generator?
Answer: Yes, the release of the new skus will allow Customer Service to contact customers and transfer existing open orders from 1.0 to 2.0 generators.

Question: Will the pricing of the 2.0 generator be the same as the 1.0 generator?
Answer: Yes, the pricing of the 2.0 generator will match the pricing of the 1.0 generator for 2024.

Question: Does the physical size of the 2.0 generator change from the size of the 1.0 generator?
Answer: No, the generator footprint is the same on both versions.
