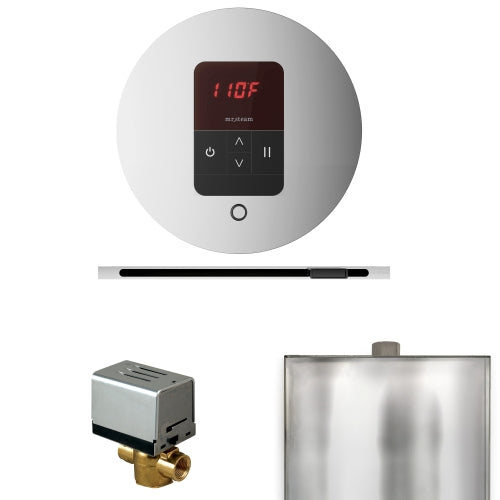

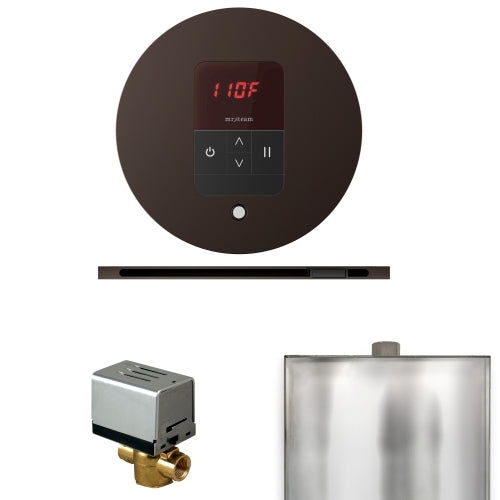

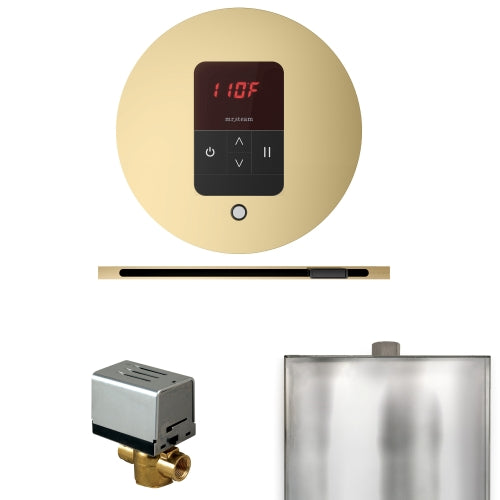

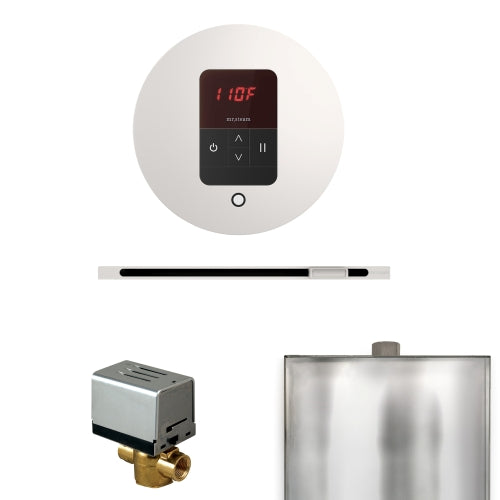

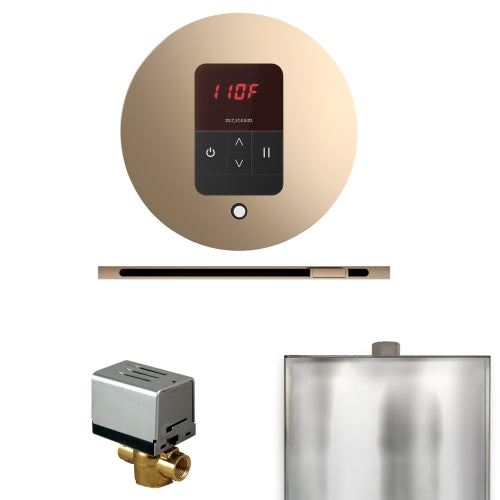

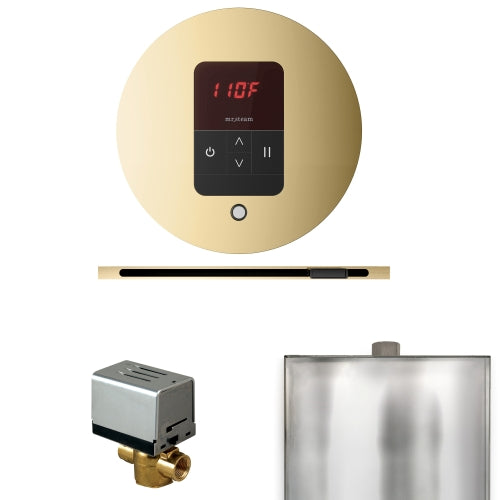

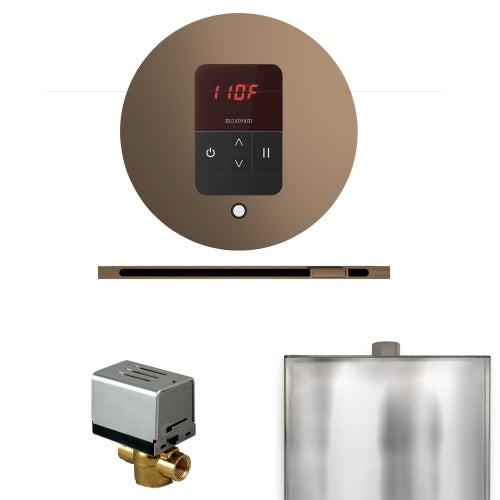

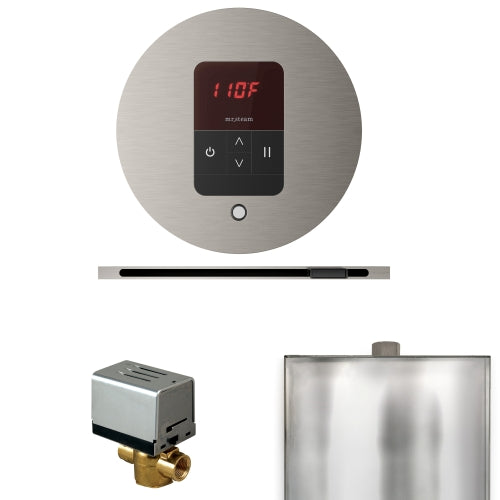

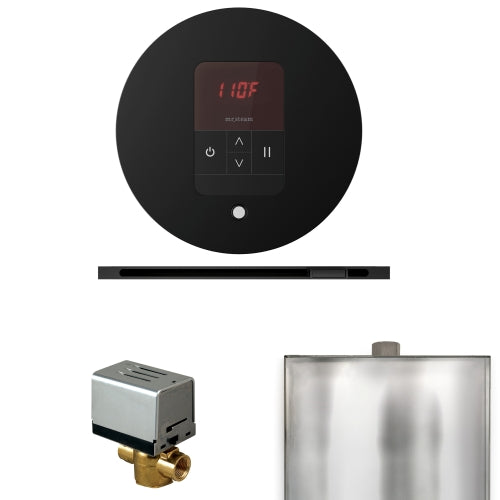

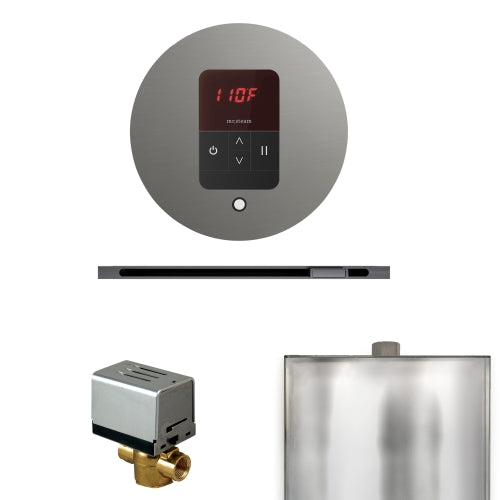

Mr.Steam Basic Butler Steam Shower Control Package with Round iTempo Control and Linear Steamhead

With the flush-mounted iTempo Control, your steam system can be seamless. Command more than just steam on this user-friendly interface. It has never been easier to optimize your steam shower experience.

---

🔑 Key Features

iTempo Control

• Comes with a matching Linear Steamhead
• Display lets you program temperature and get comfortable
• Easily mount and install your control snug to the wall
• Works with Steamlinx module and mobile app
• Dimensions: 5"Diamater (13 cm) x 0.3"D (1 cm) and 4.5"W (11 cm) x 0.3"D (1 cm) x 5"H (13 cm)

Linear SteamHead

• Slender, horizontal opening disperses steam evenly and smoothly
• Diverter directs steam upwards and reduces the steam emission zone
• Series of patented interior baffles delivers whisper quiet steam
• Has a visible AromaTray for essential oils
• No assembly of moving parts required
• Installs flush to the wall and nearly disappears in the grout line
• Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)

AutoFlush System

• Automatic self-cleaning system that promotes a long and healthy life for steam generators
• Flushes old water and impurities after every steam shower
• Quietly flushes through a 1/2" electronically-activated valve
• Simple plug and play installation
• Dimensions: 3.3"W (8 cm) x 2.5"D (6 cm) x 4.3"H (11 cm)

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface beneath the steam generator
• Built-in brackets raise the steam generator above the bottom of the pan
• Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)

---

📦 What’s Included

iTempo Control

• Control
• 30 ft Control Cable
• Tube of Silicone Sealant
• Installation and Operation Manual
• 2-Year Limited Warranty

Linear SteamHead

• SteamHead
• Faceplate
• Diverter
• AromaTray
• Silicone Sealant
• 2-Year Limited Warranty

AutoFlush System

• AutoFlush Valve with Cord
• 2-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 2-Year Limited Warranty

Specification

Model	Basic Butler Linear PKG ITEMPO
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Display	Digital Characters
Interface	Push Buttons
Diameter (RD)	5" (13 cm)
Depth (RD)	0.3" (1 cm)
Width (SQ)	4.5" (11 cm)
Depth (SQ)	0.3" (1 cm)
Height (SQ)	5" (13 cm)
Weight	5 lbs (2 kg)

Model	Steamhead 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	Autoflush MS81500E
Construction Material	Aluminum and Brass
Drain Valve	1/2" NPT
Width	3.3" (8 cm)
Depth	2.5" (6 cm)
Height	4.3" (11 cm)
Weight	2.3 lbs (1 kg)

Model	Condensation Pan 103867
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	25" (64 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	3 lbs (1 kg)

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Installation and Operation Manual

Mr.Steam Basic Butler Control Package IOM

Spec Sheet

Mr.Steam Basic Butler Control Package Spec Sheet

Mr.Steam Linear SteamHead Spec Sheet

Warranty

MrSteam Residential Steambath Controls and Accessories Warranty
