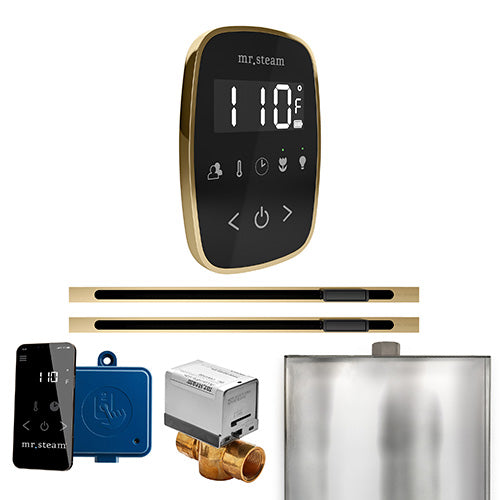

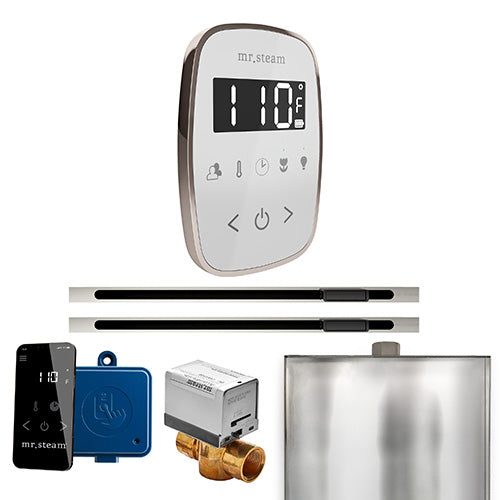

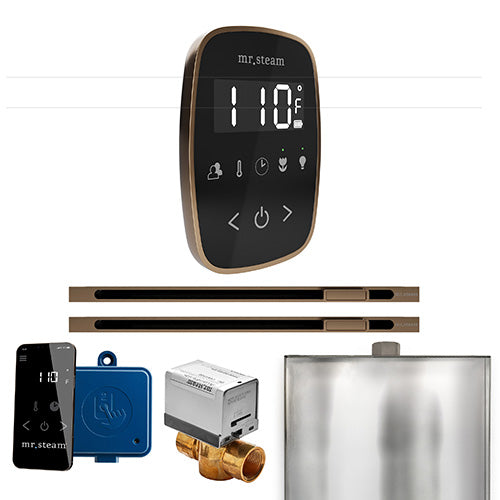

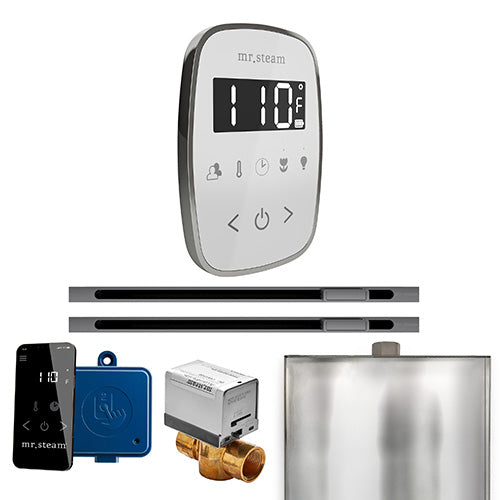

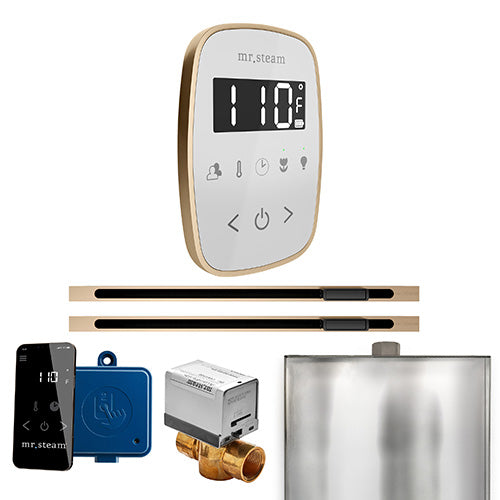

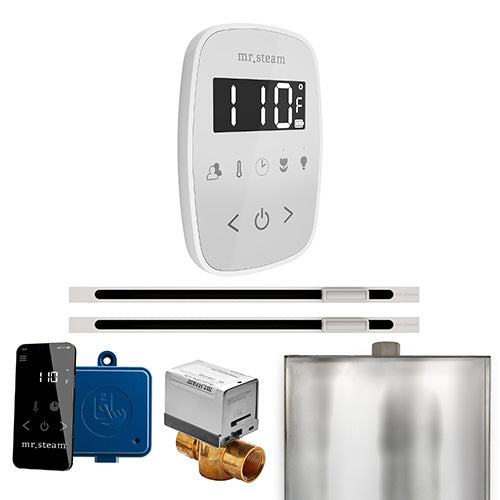

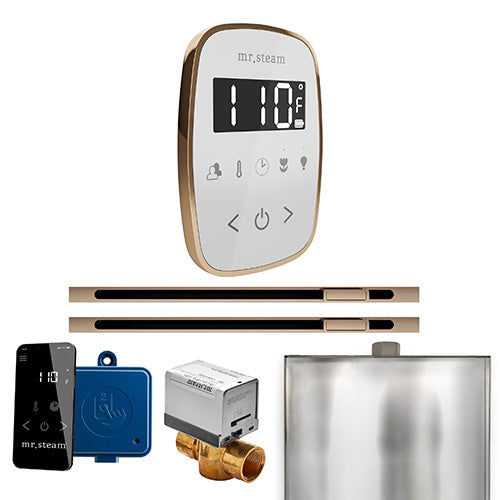

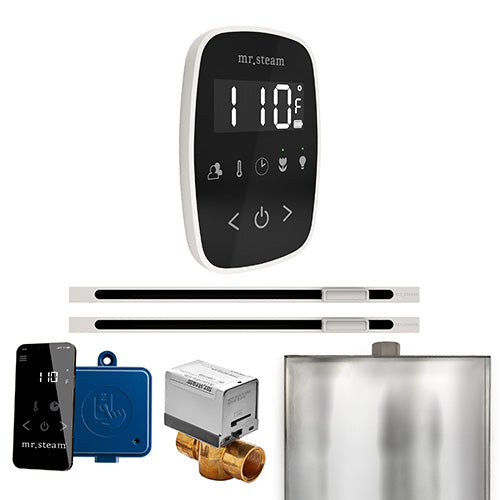

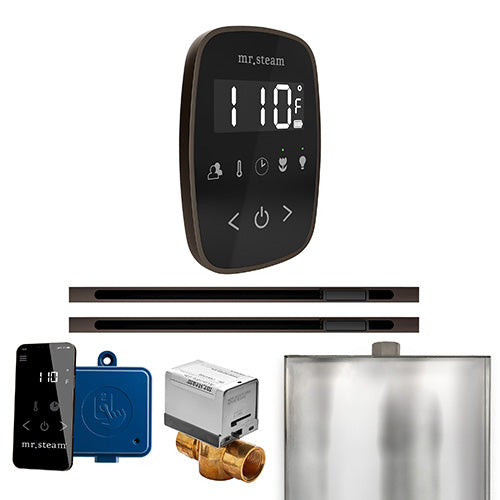

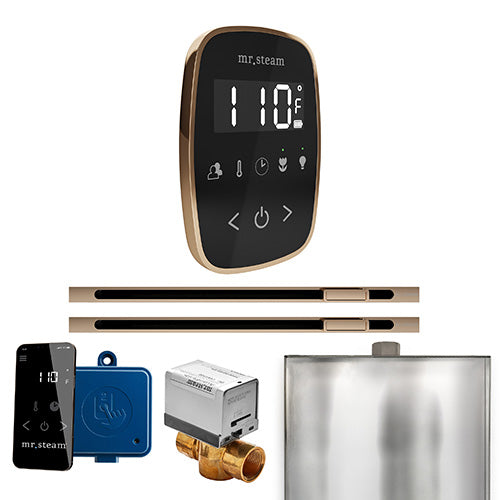

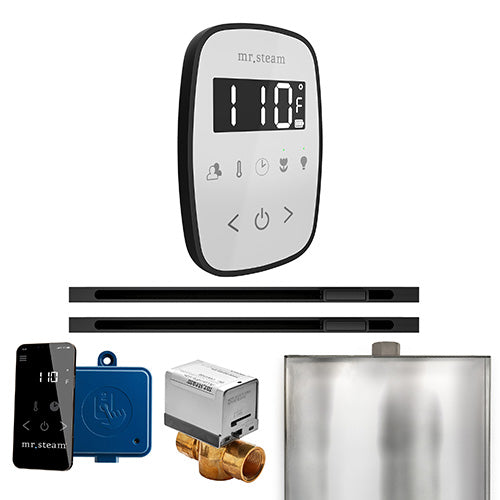

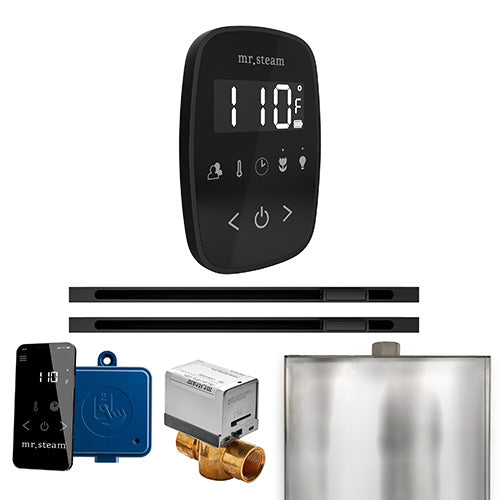

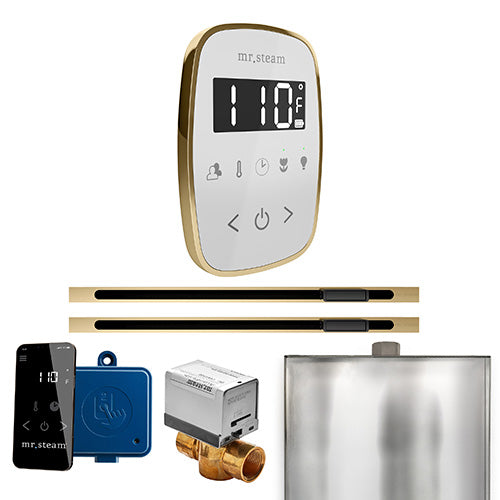

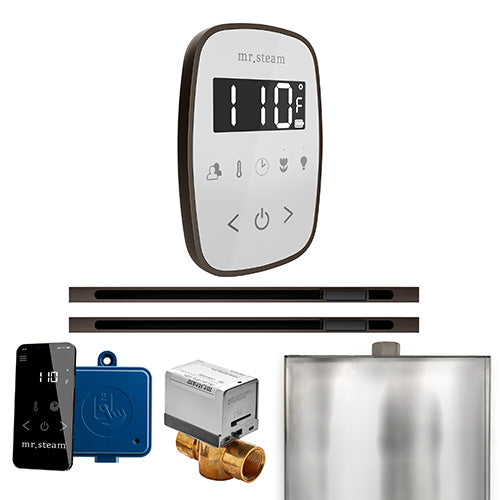

Mr.Steam ButlerFlex Max Linear Control Package

ButlerFlex Steam Shower Control Package with TempoFlex Control and Linear SteamHeads (2)

The Mr.Steam ButlerFlex Max Linear Control Package offers desired flexibility and easy access to steam. This collection comes complete with a TempoFlex Control, 2 Linear SteamHeads, SteamLinx Module and Mobile App, AutoFlush System, and Condensation Pan.

---

🔑 Key Features

TempoFlex Control

• Wireless control with flexible charging and installation
• Capacitive touch panel with 2 user presets
• Display characters are 1” tall for clear legibility
• Controls AromaTherapy and ChromaTherapy Systems
• Easy time adjustment (2-60 minutes) and temperature adjustment (80-120°F)
• Rechargeable sealed battery holds a charge for up to 6 months
• Control can be installed wired for constant power or charged outside the steam room by plugging the control into a wall adapter
• Mount to nearly any hard surface or flush to the wall
• Dimensions: 3.8"W (10 cm) x 0.9"D (2 cm) x 5.3"H (14 cm)
• Limited 2-year warranty

Linear SteamHead

• Slender, horizontal opening disperses steam evenly and smoothly
• Diverter directs steam upwards and reduces the steam emission zone
• Series of patented interior baffles delivers whisper quiet steam
• Has a visible AromaTray for essential oils
• No assembly of moving parts required
• Installs flush to the wall and nearly disappears in the grout line
• Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)
• Limited 2-year warranty

SteamLinx Module and Mobile App

• Allows you to start your steam shower from anywhere
• Operates on/off, time, and temperature using a smartphone or mobile device
• Works with Just Ask Alexa when skill is enabled
• Dimensions: 2.8"W (7 cm) x 0.9"D (2 cm) x 3.4"H (9 cm)
• Limited 2-year warranty

AutoFlush System

• Automatic self-cleaning system that promotes a long and healthy life for steam generators
• Flushes old water and impurities after every steam shower
• Quietly flushes through a 1" electronically-activated valve
• Simple plug-and-play installation
• Dimensions: 4"W (10 cm) x 2.4"D (6 cm) x 4.4"H (11 cm)
• Limited 2-year warranty

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface beneath the steam generator
• Built-in brackets raise the steam generator above the bottom of the pan
• Dimensions: 33"W (84 cm) x 9"D (23 cm) x 1.5"H (4 cm)
• Limited 2-year warranty

---

📦 What’s Included

TempoFlex Control

• Control
• Decorative Trim
• Wireless Receiver
• 3 ft Control Cable
• 30 ft Power Cord
• Power Supply
• Mounting Screws
• Surface Mount Bayonet
• Tube of Silicone Sealant
• Installation and Operation Manual
• 2-Year Limited Warranty

Linear SteamHead

• SteamHeads (2)
• Faceplates (2)
• Diverters (2)
• AromaTrays (2)
• Silicone Sealants (2)
• 2-Year Limited Warranty

SteamLinx Module and Mobile App

• SteamLinx A with Integral Cable
• SteamLinx B with Ethernet Cable
• Power Cable and Supply
• 2-Year Limited Warranty

AutoFlush System

• AutoFlush Valve with Cord
• 2-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 2-Year Limited Warranty

Specification

Model	BUTLERFLEX MAX LINEAR PKG TEMPOFLEX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired and Wireless
Display	LCD
Interface	Capacitive Touch Panel
Width	3.8" (10 cm)
Depth	0.9" (2 cm)
Height	5.3" (14 cm)
Weight	4 lbs (2 kg)

Model	STEAMHEAD 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	STEAMLINX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Width	2.8" (7 cm)
Depth	0.9" (2 cm)
Height	3.4" (9 cm)
Weight	2 lbs (1 kg)

Model	AUTOFLUSH CT81500
Construction Material	Aluminum and Brass
Drain Valve	1" NPT
Width	4" (10 cm)
Depth	2.4" (6 cm)
Height	4.4" (11 cm)
Weight	3 lbs (1 kg)

Model	CONDENSATION PAN 104402
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	33" (84 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	4 lbs (2 kg)
