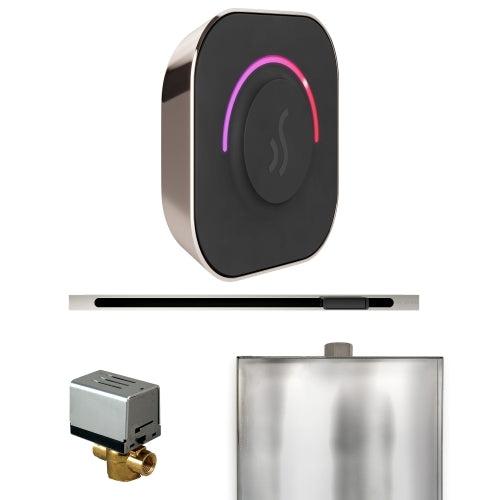

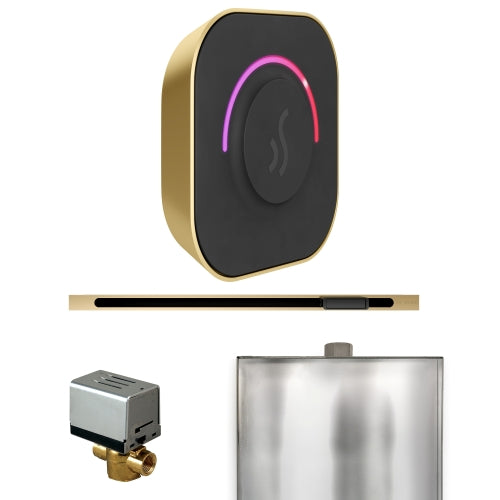

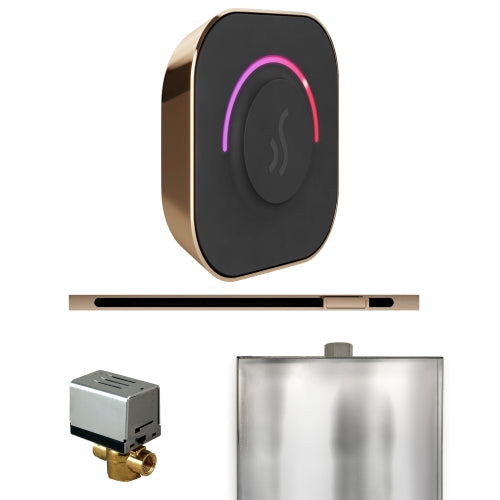

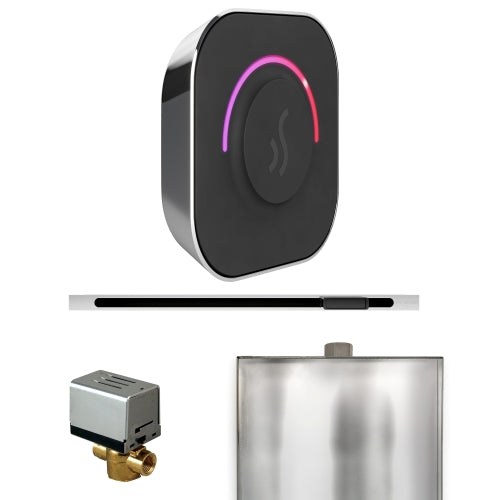

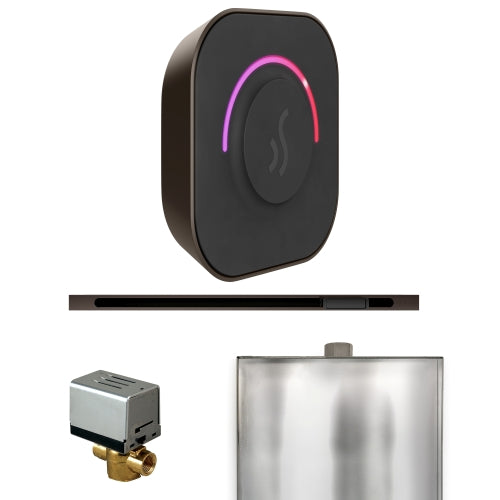

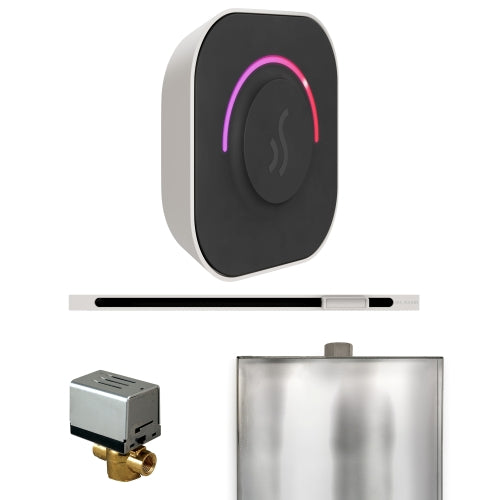

Mr.Steam ButlerTouch Steam Shower Control Package with TempoTouch Control and Linear SteamHead

The ButlerTouch Spa Package is centered around the TempoTouch steam control and the whisper quiet Linear Steam Head; TempoTouch control is designed for simple and elegant control of the steam system with a touch a finger.

---

🔑 Key Features

TempoTouch Control

• Capacitive touch control
• Simply press the button in the center to turn it on/off
• Pulses at start up and touch drive offers a tactile user experience
• Color gradient runs from blueish purple to radiant red when the system is on
• Slide finger along the arc or touch along the arc to adjust the temperature
• LED array lights up and a white dot illuminates at desired set temperature
• Temperature ranges from 80-120°F
• Face is made of rubber
• Dimensions: 3"W (8 cm) x 0.8"D (2 cm) x 3"H (8 cm)
• Limited 2-year warranty

Linear SteamHead

• Slender, horizontal opening disperses steam evenly and smoothly
• Diverter directs steam upwards and reduces the steam emission zone
• Series of patented interior baffles delivers whisper quiet steam
• Has a visible AromaTray for essential oils
• No assembly of moving parts required
• Installs flush to the wall and nearly disappears in the grout line
• Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)
• Limited 2-year warranty

AutoFlush System

• Automatic self-cleaning system that promotes a long and healthy life for steam generators
• Flushes old water and impurities after every steam shower
• Quietly flushes through a 1/2" electronically-activated valve
• Simple plug and play installation
• Dimensions: 3.3"W (8 cm) x 2.5"D (6 cm) x 4.3"H (11 cm)
• Limited 2-year warranty

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface beneath the steam generator
• Built-in brackets raise the steam generator above the bottom of the pan
• Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
• Limited 2-year warranty

---

📦 What’s Included

TempoTouch Control

• Control
• 30 ft Control Cable
• Tube of Silicone Sealant
• Installation and Operation Manual
• 2-Year Limited Warranty

Linear SteamHead

• SteamHead
• Faceplate
• Diverter
• AromaTray
• Silicone Sealant
• 2-Year Limited Warranty

AutoFlush System

• AutoFlush Valve with Cord
• 2-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 2-Year Limited Warranty

Specification

Model	BUTLERTOUCH LINEAR PKG TEMPOTOUCH
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Display	LED Array
Interface	Capacitive Touch
Width	3" (8 cm)
Depth	0.8" (2 cm)
Height	3" (8 cm)
Weight	5 lbs (2 kg)

Model	STEAMHEAD 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	AUTOFLUSH MS81500E
Construction Material	Aluminum and Brass
Drain Valve	1/2" NPT
Width	3.3" (8 cm)
Depth	2.5" (6 cm)
Height	4.3" (11 cm)
Weight	2.3 lbs (1 kg)

Model	CONDENSATION PAN 103867
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	25" (64 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	3 lbs (1 kg)

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Installation and Operation Manual

Mr.Steam ButlerTouch Control Package IOM.pdf

Warranty

MrSteam-Residential-Steambath-Controls-and-Accessories-Warranty.pdf
