Mr.Steam CT Day Spa Package 6

$5,960.00

Questions? Speak To an Expert at +1 (616) 282-2366

Voltage and Phase:

240V/1PH (Home Use) ($5960.00) 208V/1PH (Commercial Use) ($5960.00) 208V/3PH (Commercial Use) ($5960.00)

Variant

The Mr.Steam CT6E Commercial Steam Shower Generator Package is a premium solution for resorts, spas, and wellness facilities seeking reliable and efficient steam performance. Engineered with the latest technology, it features Express Steam, which maintains water at the ideal temperature—so clients can begin their steam session with minimal wait.

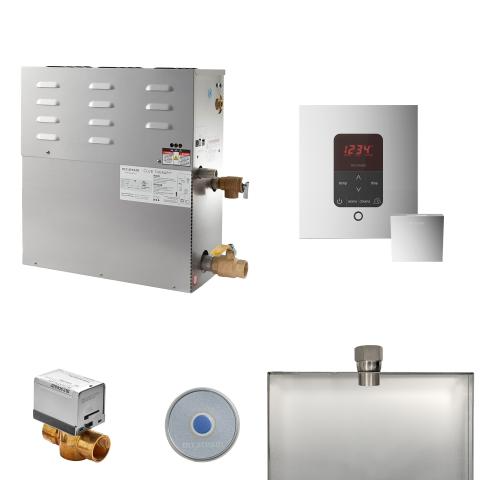

This all-in-one package includes:

6kW Steam Generator
iTempoPlus Control (installable inside or outside the steam room)
Aroma Designer SteamHead for even steam dispersion
CT SteamStop Control for quick on/off functionality
AutoFlush System for automated draining
Condensation Pan for added protection

The iTempoPlus Control gives users simple, precise control over steam duration, temperature, and power. The CT SteamStop Control adds an extra layer of convenience, letting bathers activate or stop the generator from within the steam room. Meanwhile, the AutoFlush System helps preserve performance and extend the life of the generator by automatically flushing after each use to reduce mineral buildup.

Operating with just 0.8 gallons of water per 20-minute session, the CT6E is an eco-conscious, cost-effective choice. Available in 240V and 208V configurations, it’s backed by a limited lifetime warranty and proudly designed, engineered, and assembled in the USA.

🔑 Key Features

CT Day Spa 6kW Generator

Industrial grade and serviceable heating element
Unitized stainless steel reservoir
Durable electronic components
Round mini-DIN control connections
Electronic water-level system
Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
MSTS temperature sensor allows for temperature adjustment from remote control location
Low voltage safety control circuits
Built-in 24V circuits
ASME safety valve and full port drain valve
UL/cUL listed

iTempoPlus Control

Provides control of the steamroom by the owner/operator from outside the steamroom
Programmable temperature and time settings allow the owner/operator to customize and enhance the steam bathing experience for each bather
Standard with digital display and ergonomic soft-touch keypad with Chroma, Aroma, and programmable memory settings
Quick-responding temperature sensor maintains temperature within the steamroom
Solid brass cover for durable finish and quality
Digital readout display
Preset 60-minute time cycle
On/Off and pause modes
Soft touch keypad
Inside or outside the steam/shower enclosure installation
Low voltage operation
Displays troubleshooting codes
Square design
Polished Chrome finish

AromaSteam Steamhead

Designed to maintain cooler surface temperatures with improved steam flow and quieter infusion of aromatic oil into the steam for an enhanced steam room experience
Solid brass for superior performance and finish
Quieter operation
Low profile and sleek design

CT SteamStop Control

On/Off operation
Low profile
Inside the steam/shower enclosure installation
Low voltage operation
Polished Chrome Trim finish

AutoFlush System

Automatically and electronically drains generator after use and refills tank with fresh water for "Clean Steam...Every time!"
Improves performance and lengthens system life
Efficiently removes accumulated sediment
Simple plug-and-play connection
Full 1" port design
24V AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
Two position, normally open
Brass valve body with 1/2" NPT connections
2-pin integral electrical lead with "plug-in" electrical connection
Gravity drain

Condensation Pan

Galvanized sheet metal construction
Integral 3/4" drain copper fitting

📦 What’s Included

CT Day Spa 6kW Generator
iTempoPlus Control in Polished Chrome (Standard)
Aroma Designer Steamhead in Polished Chrome (Standard)
CT SteamStop On/Off Control (Chrome Trim Only)
AutoFlush System
Condensation Pan
Express Steam (Factory Installed)
MSTS In-Room Temperature Sensor, 30' Long
Mini-DIN Control Cable, 30' Long
3-Pin Control Cable, 30' Long
RTV Silicone Sealant, .5 oz Tube
Installation and Operation Manual
UL/cUL Listed and CE Approved
Limited Warranty

Specification

Model	CT6EC1-PC
Kilowatt Rating	6kW
Minimum Adjusted Cubic Feet	40
Maximum Adjusted Cubic Feet	107
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	60 lbs

iTempoPlus Control
Length	4 1/2"
Depth	1 1/4"
Height	5"

AromaSteam Steamhead
Length	3"
Depth	7/8"
Height	2 3/4"

CT SteamStop Control
Diameter	1 1/2"
Depth	1 7/8"

AutoFlush System
Length	6 3/8"
Depth	2 3/8"
Height	6 3/8"

Condensation Pan
Length	9"
Depth	1 1/2"
Height	25"
