Mr.Steam CT Day Spa Package 9

$6,495.00

Questions? Speak To an Expert at +1 (616) 282-2366

Voltage and Phase:

240V/1PH (Home Use) ($6495.00) 208V/1PH (Commercial Use) ($6495.00) 208V/3PH (Commercial Use) ($6495.00)

Variant

The Mr.Steam CT9E Commercial Steam Shower Generator Package delivers reliable, high-performance steam for day spas, wellness centers, and resort environments. Designed with advanced technology, it features Express Steam, a built-in thermostat that keeps water preheated—so steam is ready when your clients are.

This complete package includes everything needed for a premium steam experience:

9kW Steam Generator
iTempoPlus Control (installable inside or outside the steam room)
Aroma Designer SteamHead for consistent, even steam dispersion
CT SteamStop Control for quick on/off activation
AutoFlush System for automatic draining and maintenance
Condensation Pan for added protection

The iTempoPlus Control offers easy management of steam duration, temperature, and power, while the SteamStop Control adds convenience for in-room operation. The AutoFlush System helps extend the life of the unit by draining after each use, reducing scale buildup.

Engineered for efficiency, the CT9E uses just 1.2 gallons of water during a typical 20-minute steam session—making it an eco-conscious and cost-effective solution. Compatible with both 240V and 208V configurations, this generator is backed by a limited lifetime warranty and proudly designed, engineered, and assembled in the USA.

🔑 Key Features

CT Day Spa 9kW Generator

Industrial grade and serviceable heating element
Unitized stainless steel reservoir
Durable electronic components
Round mini-DIN control connections
Electronic water-level system
Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
MSTS temperature sensor allows for temperature adjustment from remote control location
Low voltage safety control circuits
Built-in 24V circuits
ASME safety valve and full port drain valve
UL/cUL listed

iTempoPlus Control

Provides control of the steamroom by the owner/operator from outside the steamroom
Programmable temperature and time settings allow the owner/operator to customize and enhance the steam bathing experience for each bather
Standard with digital display and ergonomic soft-touch keypad with Chroma, Aroma, and programmable memory settings
Quick-responding temperature sensor maintains temperature within the steamroom
Solid brass cover for durable finish and quality
Digital readout display
Preset 60-minute time cycle
On/Off and pause modes
Soft touch keypad
Inside or outside the steam/shower enclosure installation
Low voltage operation
Displays troubleshooting codes
Square design
Polished Chrome finish

AromaSteam Steamhead

Designed to maintain cooler surface temperatures with improved steam flow and quieter infusion of aromatic oil into the steam for an enhanced steam room experience
Solid brass for superior performance and finish
Quieter operation
Low profile and sleek design

CT SteamStop Control

On/Off operation
Low profile
Inside the steam/shower enclosure installation
Low voltage operation
Polished Chrome Trim finish

AutoFlush System

Automatically and electronically drains generator after use and refills tank with fresh water for "Clean Steam...Every time!"
Improves performance and lengthens system life
Efficiently removes accumulated sediment
Simple plug-and-play connection
Full 1" port design
24V AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
Two position, normally open
Brass valve body with 1/2" NPT connections
2-pin integral electrical lead with "plug-in" electrical connection
Gravity drain

Condensation Pan

Galvanized sheet metal construction
Integral 3/4" drain copper fitting

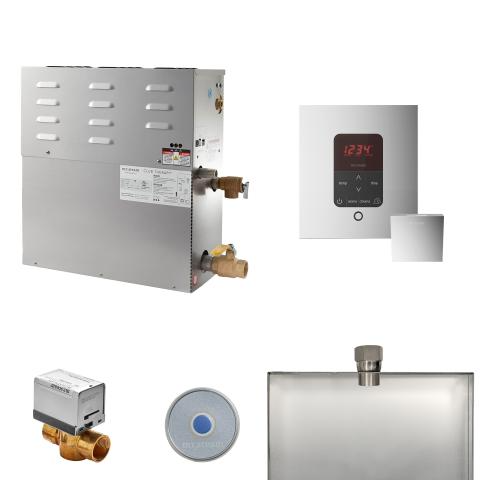

📦 What’s Included

CT Day Spa 9kW Generator
iTempoPlus Control in Polished Chrome (Standard)
Aroma Designer Steamhead in Polished Chrome (Standard)
CT SteamStop On/Off Control (Chrome Trim Only)
AutoFlush System
Condensation Pan
Express Steam (Factory Installed)
MSTS In-Room Temperature Sensor, 30' Long
Mini-DIN Control Cable, 30' Long
3-Pin Control Cable, 30' Long
RTV Silicone Sealant, .5 oz Tube
Installation and Operation Manual
UL/cUL Listed and CE Approved
Limited Warranty

Specification

Model	CT9EC1-PC
Kilowatt Rating	9kW
Minimum Adjusted Cubic Feet	108
Maximum Adjusted Cubic Feet	257
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	60 lbs

iTempoPlus Control
Length	4 1/2"
Depth	1 1/4"
Height	5"

AromaSteam Steamhead
Length	3"
Depth	7/8"
Height	2 3/4"

CT SteamStop Control
Diameter	1 1/2"
Depth	1 7/8"

AutoFlush System
Length	6 3/8"
Depth	2 3/8"
Height	6 3/8"

Condensation Pan
Length	9"
Depth	1 1/2"
Height	25"
