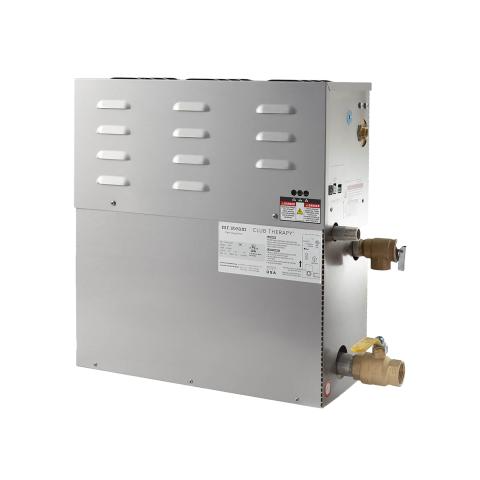

Mr.Steam CT Steam Generator 9

The Mr.Steam CT9E Commercial Steam Shower Generator is a robust, high-performance steam system designed for spas, resorts, and wellness centers that demand consistent, reliable steam. Engineered with a durable stainless-steel outer casing and built using the latest steam technology, the CT9E delivers efficient, long-lasting performance in commercial settings.

Featuring Express Steam®, this generator maintains optimal water temperature with a built-in thermostat—allowing for quicker heat-up and minimal downtime between sessions. With its energy-conscious design and dependable components, it provides exceptional value for high-traffic environments.

The CT9E is available in 240V or 208V single-phase (1PH) configurations to suit a variety of installations. Using only 1.2 gallons of water during a typical 20-minute session, it’s both eco-conscious and cost-effective.

Backed by a limited lifetime warranty, all Mr.Steam commercial generators are proudly designed, engineered, and assembled in the USA and are built to withstand the demands of daily commercial use.

---

🔑 Key Features

• 9kW industrial-grade steam generator

• Stainless steel outer housing and unitized reservoir

• Commercial-grade, serviceable heating element

• Durable low-voltage electronic components

• Round mini-DIN control connections

• Electronic water level management system

• Express Steam® built-in thermostat for faster steam readiness

• Built-in 24V safety control circuits

• ASME-certified safety valve and full-port drain valve

• UL/cUL listed for North American compliance

---

📦 What’s Included

• CT Day Spa 9kW Generator
• Express Steam (Factory Installed)
• Installation and Operation Manual
• UL/cUL Listed and CE Approved
• Limited Warranty


Specification

Model	CT9EC1
Kilowatt Rating	9kW
Minimum Adjusted Cubic Feet	108
Maximum Adjusted Cubic Feet	257
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	40 lbs

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Mr.Steam CT Day Spa Steam Generator IOM.pdf

Mr.Steam CT Day Spa Steam Generator Spec Sheet.pdf

Mr.Steam CT Day Spa Series Warranty.pdf
