Mr.Steam CT Day Spa Package 12

$7,445.00

Questions? Speak To an Expert at +1 (616) 282-2366

Voltage and Phase:

240V/1PH (Home Use) ($7445.00) 208V/1PH (Commercial Use) ($7445.00) 208V/3PH (Commercial Use) ($7445.00)

Variant

The Mr.Steam CT12E Commercial Steam Shower Generator Package is a high-performance solution ideal for resorts, spas, and wellness facilities seeking a powerful and reliable steam experience. Equipped with Express Steam® technology, the CT12E keeps water at the ready, delivering near-instant steam and minimizing wait times—perfect for high-traffic environments.

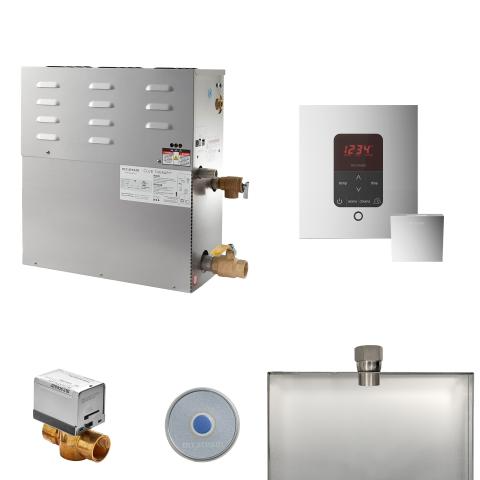

This complete package includes:

12kW Steam Generator
iTempoPlus® Control (mountable inside or outside the steam room)
Aroma Designer SteamHead for even, efficient steam distribution
CT SteamStop® Control for convenient in-room on/off access
AutoFlush® System for automatic maintenance and longevity
Condensation Pan for additional safety and protection

With the iTempoPlus Control, users can easily adjust session duration, temperature, and power. The SteamStop Control offers quick in-room operation, while the AutoFlush System automatically drains the unit after each session to help reduce mineral buildup and extend the life of the generator.

Engineered for energy and water efficiency, the CT12E uses just 1.6 gallons of water during a typical 20-minute session. It’s available in both 240V and 208V configurations and is backed by a limited lifetime warranty. Like all Mr.Steam commercial systems, it’s proudly designed, engineered, and assembled in the USA.

🔑 Key Features

12kW industrial-grade CT Day Spa Steam Generator
Unitized stainless-steel reservoir
Serviceable, commercial-grade heating element
Durable electronic components with low-voltage safety circuits
Round mini-DIN control connections
Electronic water-level management system
Express Steam® built-in thermostat for faster heat-up
MSTS temperature sensor for remote temperature adjustment
Built-in 24V control circuits
ASME safety valve and full-port drain valve
UL/cUL listed for safety and compliance

iTempoPlus Control

Provides control of the steamroom by the owner/operator from outside the steamroom
Programmable temperature and time settings allow the owner/operator to customize and enhance the steam bathing experience for each bather
Standard with digital display and ergonomic soft-touch keypad with Chroma, Aroma, and programmable memory settings
Quick-responding temperature sensor maintains temperature within the steamroom
Solid brass cover for durable finish and quality
Digital readout display
Preset 60-minute time cycle
On/Off and pause modes
Soft touch keypad
Inside or outside the steam/shower enclosure installation
Low voltage operation
Displays troubleshooting codes
Square design
Polished Chrome finish

AromaSteam Steamhead

Designed to maintain cooler surface temperatures with improved steam flow and quieter infusion of aromatic oil into the steam for an enhanced steam room experience
Solid brass for superior performance and finish
Quieter operation
Low profile and sleek design

CT SteamStop Control

On/Off operation
Low profile
Inside the steam/shower enclosure installation
Low voltage operation
Polished Chrome Trim finish

AutoFlush System

Automatically and electronically drains generator after use and refills tank with fresh water for "Clean Steam...Every time!"
Improves performance and lengthens system life
Efficiently removes accumulated sediment
Simple plug-and-play connection
Full 1" port design
24V AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
Two position, normally open
Brass valve body with 1/2" NPT connections
2-pin integral electrical lead with "plug-in" electrical connection
Gravity drain

Condensation Pan

Galvanized sheet metal construction
Integral 3/4" drain copper fitting

📦 What’s Included

CT Day Spa 12kW Generator
iTempoPlus Control in Polished Chrome (Standard)
Aroma Designer Steamhead in Polished Chrome (Standard)
CT SteamStop On/Off Control (Chrome Trim Only)
AutoFlush System
Condensation Pan
Express Steam (Factory Installed)
MSTS In-Room Temperature Sensor, 30' Long
Mini-DIN Control Cable, 30' Long
3-Pin Control Cable, 30' Long
RTV Silicone Sealant, .5 oz Tube
Installation and Operation Manual
UL/cUL Listed and CE Approved
Limited Warranty

Specification

Model	CT12EC1-PC
Kilowatt Rating	12kW
Minimum Adjusted Cubic Feet	258
Maximum Adjusted Cubic Feet	411
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	60 lbs

iTempoPlus Control
Length	4 1/2"
Depth	1 1/4"
Height	5"

AromaSteam Steamhead
Length	3"
Depth	7/8"
Height	2 3/4"

CT SteamStop Control
Diameter	1 1/2"
Depth	1 7/8"

AutoFlush System
Length	6 3/8"
Depth	2 3/8"
Height	6 3/8"

Condensation Pan
Length	9"
Depth	1 1/2"
Height	25"
