Mr.Steam CX Generator Package
Questions? Speak To an Expert at +1 (616) 282-2366
The Mr.Steam CX Generator Package is the next generation of steam power. Ideal for large health club and spa facilities, the CX Generator Package is designed for steam rooms with dimensions up to 1,000 cubic feet (CF).
The CX Generator is engineered for peak performance and offers quieter power, ease of installation, and an advanced touch-screen control.

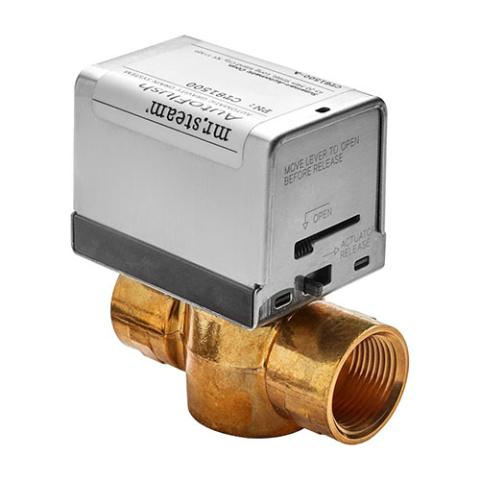

You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory-installed AutoFlush System. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.
🔑 Key Features
CX Generator
- Industrial grade and serviceable heating element
- Unitized stainless steel reservoir
- Durable electronic components
- Round mini-DIN control connections
- Electronic water-level system
- Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
- MSTS temperature sensor allows for temperature adjustment from remote control location
- Low voltage safety control circuits
- Built-in 24V circuits
- ASME safety valve and full port drain valve
- UL/cUL listed

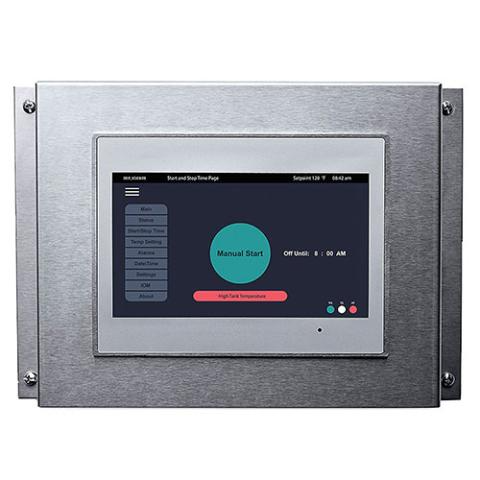

CX Control
- 7” color touch screen control with menu driven user interface
- Easily set on/off time and view system status while the unit is running
- Controls multiple CX Generators in series
- Dimensions: 7.1"L x 1.6"W x 5.3"H

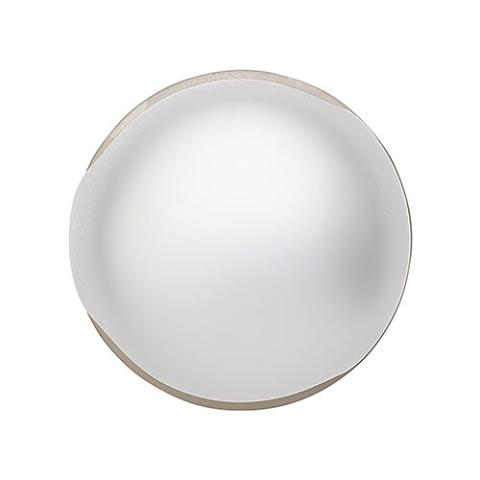

Commercial SteamHead
- Complete with polycarbonate Acrylic Shield
- Comes in a Polished Chrome finish
- No assembly of moving parts required
- Dimensions: 3.1”Diameter x 1.8”W

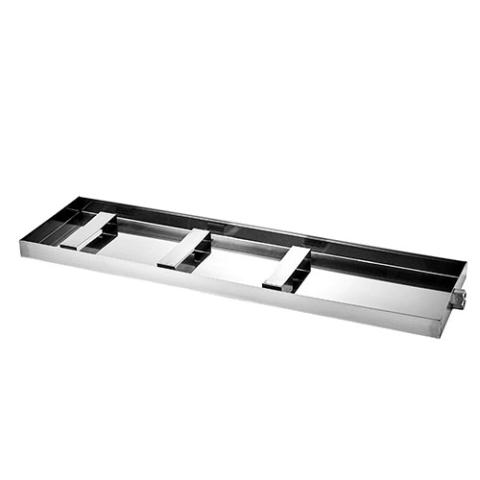

Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface with steam generator placed inside
- Dimensions: 33"L x 1.5"W x 9"H
📦 What’s Included
CX Generator
- CX Generator
- Installation and Operation Manual
- 1-Year Limited Warranty
CX Control
- CX Control
- 1-Year Limited Warranty
Commercial SteamHead
- Commercial SteamHead
- 1-Year Limited Warranty
Condensation Pan
- Condensation Pan
- 1-Year Limited Warranty
Specification
| Model | CX0360-CX1000 |
|---|---|
| Construction Material | Stainless Steel |
| Installation Type | Hardwired |
| Kilowatt Rating | 9kW-24kW |
| Wattage | 9000-24000 |
| Water Supply Connection | 3/8" NPT |
| Drain Connection | 1" NPT |
| Safety Valve Connection | 3/4" NPT |
| Minimum Cubic Feet | 0 |
| Maximum Cubic Feet | 1000 |
| Product Dimensions | 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System) |
| Shipping Weight | 60 lbs |
| CX Control | |
|---|---|
| Product Dimensions | 7.1"L x 1.9"W x 5.3"H |
| Commercial SteamHead | |
|---|---|
| Product Dimensions | 3.1"Diameter x 1.8"Depth |
| Condensation Pan | |
|---|---|
| Product Dimensions | 33"L x 1.5"W x 9"H |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
MrSteam-CX-Steam-Shower-Generator-Package-IOM.pdf
