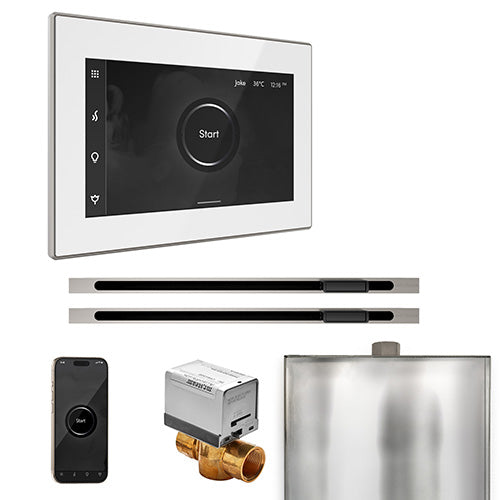

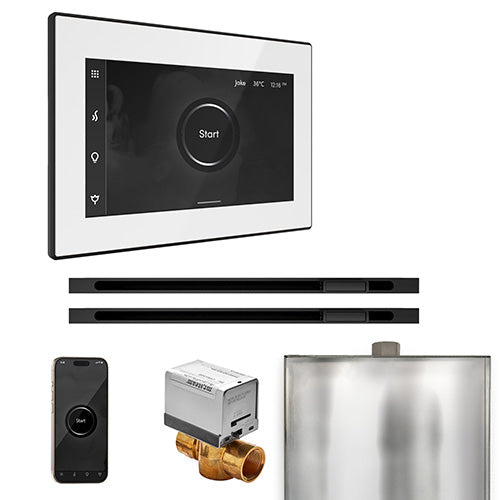

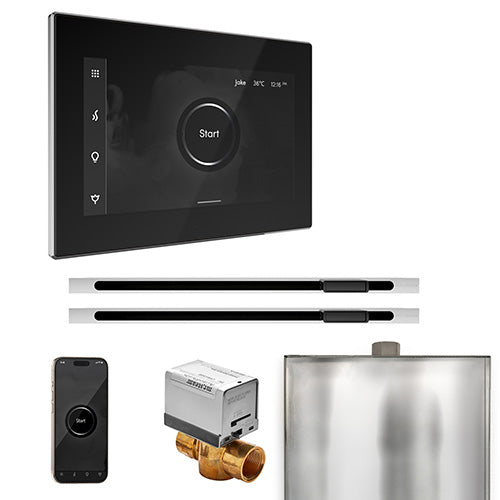

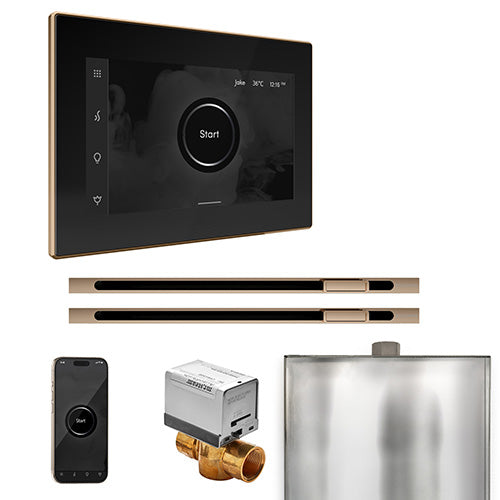

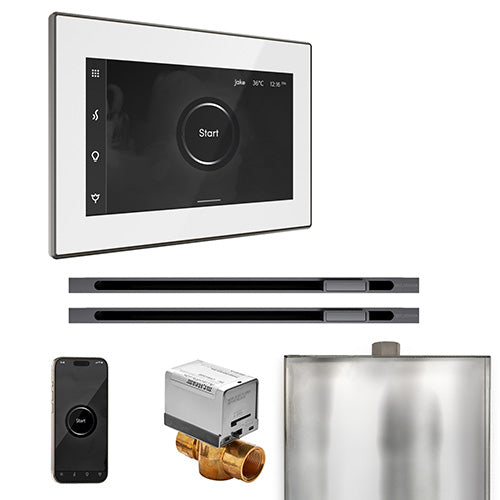

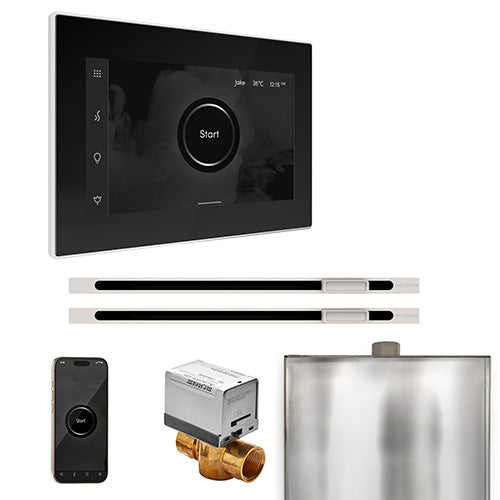

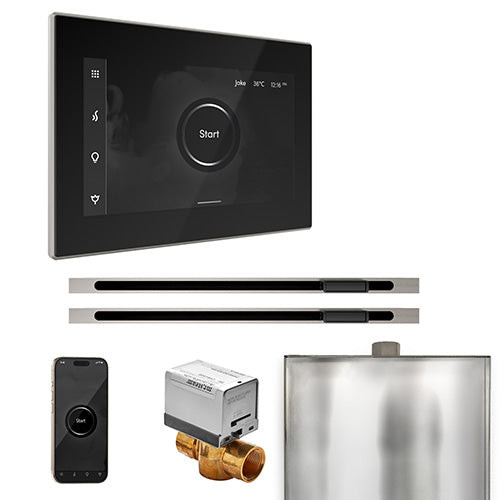

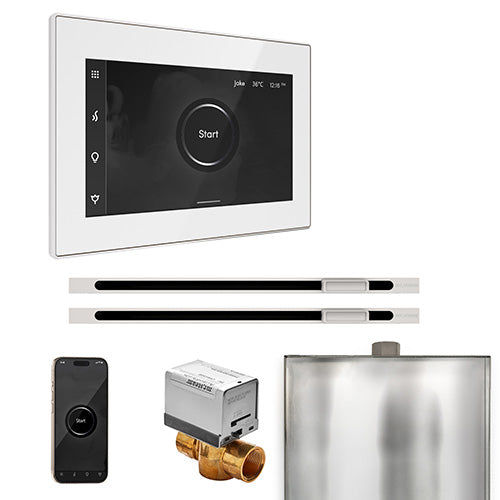

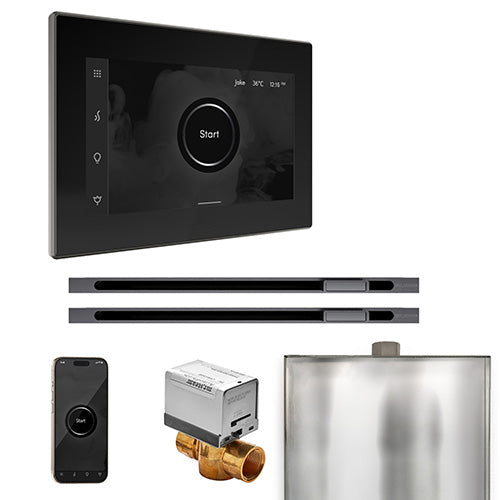

Mr.Steam XButler Max Linear Control Package

Butler Steam Shower Control Package w/ iSteamX Control and Linear SteamHeads (2)

Take total control over every detail of your steam shower experience with the Mr.Steam XButler Max Linear Control Package. This collection comes complete with an iSteamX Control, 2 Linear SteamHeads, AutoFlush System, and Condensation Pan. Personalize your temperature, settings, and steam therapies at the touch of a finger.

---

🔑 Key Features

iSteamX Control

• Award-winning, full color LCD touchscreen with total control over all features of your steam shower experience
• Automatically preheat your steam shower so it's ready when you are
• Available in 6 different languages: English, French, Spanish, Italian, German, and Russian
• Access time, temperature, apps, profiles, and steam therapies with the touch of a finger
• Create custom profile settings for up to 8 users
• Listen to your favorite music with aux, radio, or bluetooth
• Have peace of mind with temperature timed shut-offs and passcode protection
• Transform your senses with optional chromatic lighting and aromatic infusers
• Waterproof touchscreen is so technologically advanced it can tell the difference between a drop of water and your finger
• Manufactured in strong, durable, and long-lasting solid brass
• Wall-mount installation
• Dimensions: 7.6"W (19 cm) x 0.6"D (2 cm) x 5.2"H (13 cm)
• Limited 2-year warranty

Linear SteamHead

• Slender, horizontal opening disperses steam evenly and smoothly
• Diverter directs steam upwards and reduces the steam emission zone
• Series of patented interior baffles delivers whisper quiet steam
• Has a visible AromaTray for essential oils
• No assembly of moving parts required
• Installs flush to the wall and nearly disappears in the grout line
• Dimensions: 16"W (41 cm) x 4.8"D (12 cm) x 9.3"H (24 cm)
• Limited 2-year warranty

AutoFlush System

• Automatic self-cleaning system that promotes a long and healthy life for steam generators
• Flushes old water and impurities after every steam shower
• Quietly flushes through a 1" electronically-activated valve
• Simple plug and play installation
• Dimensions: 4"W (10 cm) x 2.4"D (6 cm) x 4.4"H (11 cm)
• Limited 2-year warranty

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface beneath the steam generator
• Built-in brackets raise the steam generator above the bottom of the pan
• Dimensions: 33"W (84 cm) x 9"D (23 cm) x 1.5"H (4 cm)
• Limited 2-year warranty

---

📦 What’s Included

iSteamX Control

• Control
• iSteamX Hub
• 30 ft Control Cable with Mini-Din
• 30 ft iSteamX Cable with Screw Connector
• Power Supply
• Tube of Silicone Sealant
• Installation and Operation Manu

Linear SteamHead

• SteamHeads (2)
• Faceplates (2)
• Diverters (2)
• AromaTrays (2)
• Silicone Sealants (2)
• 2-Year Limited Warranty

AutoFlush System

• AutoFlush Valve with Cord
• 2-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 2-Year Limited Warranty

Specification

Model	XBUTLER MAX LINEAR PKG ISTEAMX
Construction Material	Plastic, Metal, Electronics
Installation Type	Hardwired
Display	Full Color LCD
Interface	Touchscreen
Width	7.6" (19 cm)
Depth	0.6" (2 cm)
Height	5.2" (13 cm)
Weight	7 lbs (3 kg)

Model	STEAMHEAD 104480
Construction Material	Brass
SteamHead Connection	3/4" NPT
Width	16" (41 cm)
Depth	4.8" (12 cm)
Height	9.3" (24 cm)
Weight	9.2 lbs (4 kg)

Model	AUTOFLUSH CT81500
Construction Material	Aluminum and Brass
Drain Valve	1" NPT
Width	4" (10 cm)
Depth	2.4" (6 cm)
Height	4.4" (11 cm)
Weight	3 lbs (1 kg)

Model	CONDENSATION PAN 104402
Construction Material	Stainless Steel
Drain Fitting	3/4" NPT
Width	33" (84 cm)
Depth	9" (23 cm)
Height	1.5" (4 cm)
Weight	4 lbs (2 kg)
