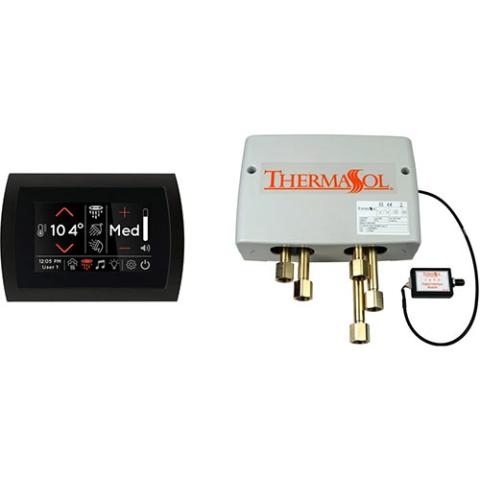

The ThermaSol DSP-SIG is a shower package including SignaTouch 5" LCD Control and a Digital Shower Valve. Customizable for up to two different user settings. Control trim available in black or white.
ThermaSol Digital Shower Package with SignaTouch
Questions? Speak To an Expert at +1 (616) 282-2366
Steam generator sold separately.
🔑 Key Features

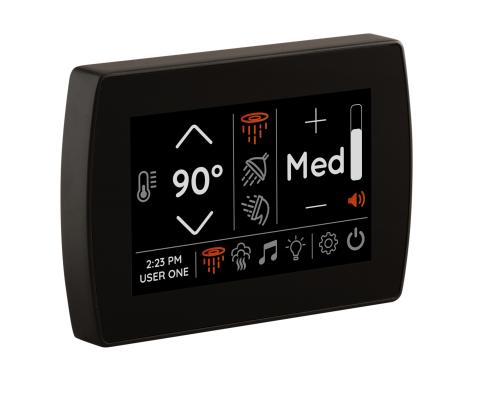

SignaTouch Control
- Modern Square (recessed into the wall)
- Flexible installation (vertical and horizontal)
- Steam Shower Control
- Operates Smart Shower Valve
- Operates HydroVive
- Operates Serenity Rainhead
- Touchscreen Control
- Steam time control
- Steam temperature control
- Memory Settings
- 2 Customizable User Settings
- Date display
- Time display
- Fahrenheit or Celsius Settings
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 5.7" W x 1.25" D x 4.8"H
- Lifetime Warranty (Parts and Labor - 2 years
Digital Shower Valve
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valve
- IAPMO approved
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 11"W x 3"D x 7"H
- 5 year warranty
📦 What’s Included
SignaTouch Control
- SignaTouch control
- Silicone
- Mud ring
- Installation instructions
- Warning label
- Warranty
Digital Shower Valve
- Digital Shower Valve
- Screw set
- Connection nipple set
- CAN-bus cable 50ft'
- Digital interface
- Back up battery
- Installation manual
- Warranty
Specifications
| Model | DSP-SIG |
|---|
| Model | STC |
|---|---|
| Construction | Black Acrylic |
| Display | 5" Capacitive Touch Screen |
| Display Full Color | 16.7M |
| Display resolution | 480 x 800 |
| Interface | Single Touch |
| Shipping Weight | 1.25lbs |
| Width | 5.7" |
| Depth | 1.25" |
| Height | 4.8" |
| Installation | In Shower |
| Model | Digital Shower Valve |
|---|---|
| 2 Inputs | 1/2" FNPT |
| 3 Outputs | 1/2" FNPT |
| Power Supply | |
| Input | 11VAC, 0.5 Amps |
| Output | 15VDC, 3 Amps required |
| Shipping Weight | 10.65 lbs |
| Width | 11" |
| Depth | 3" |
| Height | 7" |
