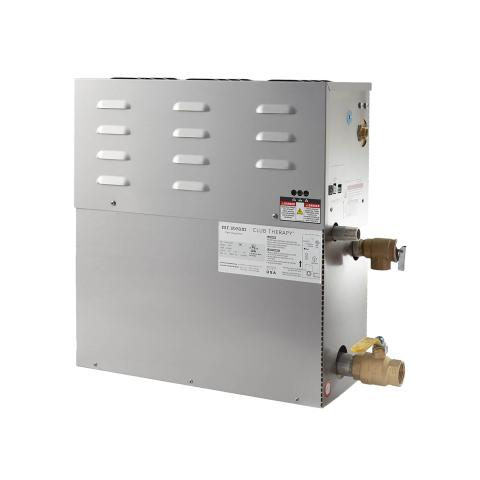

Mr.Steam CT Steam Generator 12

The Mr.Steam CT12E Commercial Steam Shower Generator is engineered for high-performance use in resorts, spas, and wellness centers. Built with a durable stainless-steel outer casing and powered by advanced steam technology, it ensures long-lasting reliability and consistent steam delivery in demanding commercial environments.

Featuring Express Steam®, the CT12E keeps water at optimal temperature with a built-in thermostat, allowing for rapid steam activation and minimal downtime—ideal for high-traffic spa settings.

Available in both 240V and 208V single-phase (1PH) configurations, this generator offers flexibility in installation. It uses only 1.6 gallons of water per 20-minute session, making it an eco-conscious and energy-efficient choice.

The Mr.Steam CT series is fully serviceable, UL/cUL listed, and backed by a limited lifetime warranty. Like all Mr.Steam commercial units, the CT12E is proudly designed, engineered, and assembled in the USA.

---

🔑 Key Features

• Stainless steel outer housing

• Round mini-DIN control connections

• Electronic water-level monitoring system

• Express Steam® built-in thermostat for faster startup

• Low-voltage safety control circuits

• Integrated 24V control circuits

• ASME-certified safety valve

• Full-port drain valve for easy maintenance

• UL/cUL listed for commercial use

---

📦 What’s Included

• Mr.Steam CT Day Spa 12kW Generator

• Express Steam® (Factory Installed)

• Installation and Operation Manual

• UL/cUL Listed and CE Approved

• Limited Lifetime Warranty

Specifications

Model	CT12EC1
Kilowatt Rating	12kW
Minimum Adjusted Cubic Feet	258
Maximum Adjusted Cubic Feet	411
Water Supply Connection	3/8" NPT
Generator Steam Line Connection	1/2" NPT
Steam Head Connection	1/2" NPT
Drain Connection	1" NPT
Safety Relief Valve Connection	3/4" NPT
Safety Relief Valve PSIG	15 PSIG
Length	17"
Depth	7 7/8"
Height	18 1/2"
Shipping Weight	40 lbs

Shipping

For more information, feel free to contact us at: contact@radiantdollhealth.com

Manual

Mr.Steam CT Day Spa Steam Generator IOM.pdf

Mr.Steam CT Day Spa Steam Generator Spec Sheet.pdf

Mr.Steam CT Day Spa Series Warranty.pdf
