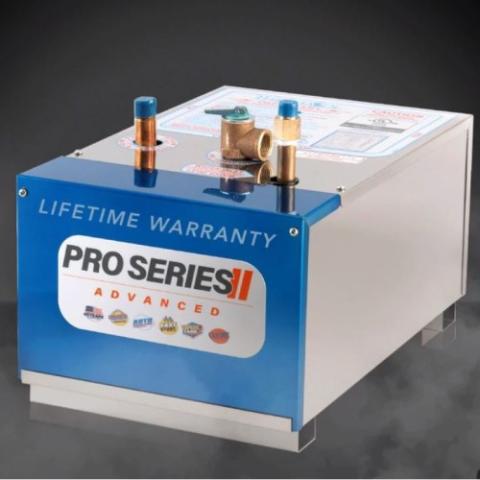

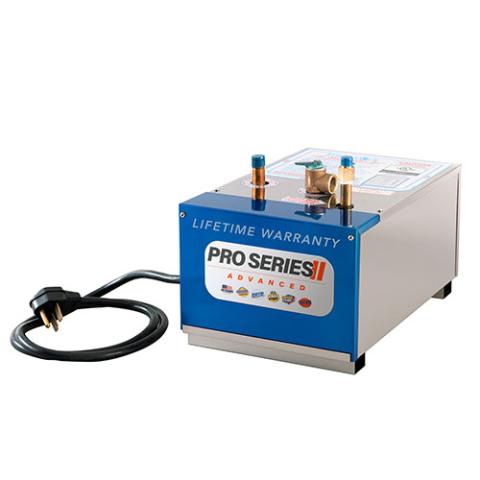

ThermaSol PROII-140 Steam Generator – 8kW for 85–140 cu. ft. Rooms
Advanced steam performance meets long-lasting reliability.
The ThermaSol PROII-140 is a high-performance steam generator engineered for home steam showers ranging from 85 to 140 adjusted cubic feet (ACF). Delivering 8kW of power in a 208V–240V, single-phase setup, it offers dependable steam output for a truly spa-like experience in the comfort of your own home.
Built with commercial-grade stainless steel and Incoloy heating elements, this unit is crafted to last and perform under demanding conditions. It replaces the earlier SSA-140 model and introduces upgraded features like FastStart™ technology for rapid steam generation and PowerFlush™ self-cleaning to help protect the tank from mineral buildup and sediment.
The PROII Series is known for its steady, uninterrupted steam output—no surges, no lags. The split-tank design helps extend the life of the unit, while CAN-bus digital communication ensures seamless integration with all compatible ThermaSol controls and accessories.

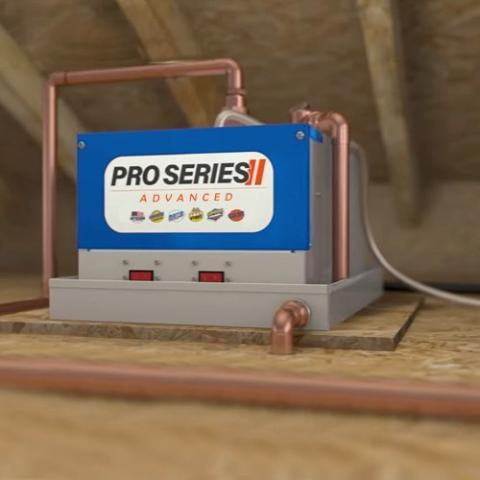

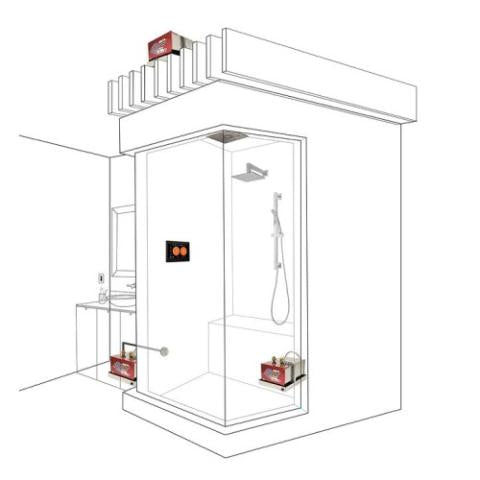

Compatible with a wide range of ThermaSol smart systems and controls, the PROII-140 can be installed up to 50 feet away from the shower enclosure—ideal for placing in nearby closets, vanities, attics, or basements.
🔧 Key Features
-
For steam rooms 85–140 adjusted cu. ft.
-
8kW power, operates on 208V–240V, single-phase
-
FastStart™: Generates steam in seconds
-
PowerFlush™: Pressurized tank cleaning system
-
Constant steam output without bursts or dips
-
Split-tank construction enhances unit longevity
-
Stainless steel body with professional-grade components
-
CAN-bus digital communication for seamless integration
-
Compatible with ThermaSol controls: Thermatouch, Signatouch, Microtouch, Signature, and more
-
Pairs with HydroVive, Serenity Light & Music, and other accessories
-
Made in the USA
-
Lifetime limited warranty
-
UL and CSA listed for safety
📏 Dimensions
22" L x 18" W x 14" H
Includes
- 8kW Steam generator
- In-line water screen kit
- Steamhead housing installation tool
- Steamhead housing and cable kit
- 208-240 volt power cord (5ft)
- 50' CAN-bus cable for the controller
- Installation instructions
- Static cling warning label
- Warranty
Specifications
| Model | PROII-140 |
|---|---|
| Kilowatt Rating | 8 kW |
| Maximum Cubic Feet | 140 ACF |
| Amperage | 37 |
| Heater Weight | 40 lbs |
| Water Inlet | 3/8" NPT |
| Steam Outlet | 1/2" NPT |
| Safety Valve | 3/4" NPT |
| Electrical Connection | NEMA 6-50P |
| Width | 22" |
| Depth | 18" |
| Height | 14" |
Shipping
For more information, feel free to contact us at: contact@radiantdollhealth.com
Manual
PROII Series Install Diagram (to395)
Generator Placement Video
